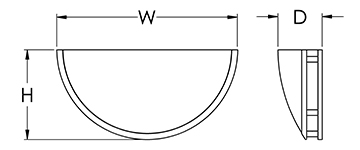

DIMENSIONS

W H D MC BASE MODEL NO.
16″ 8″ 4″ 3″ S3815-L16
20″ 10″ 4″ 3″ S3816-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3815-L16 + 27K + PT BN + Option
S3816-L18 30K BA PB
35K BB PC
40K BC PN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2 Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey; FA-6 Tuscan]
TPL Top Lens

LIGHT OUTPUT

LXX = ~ 72 LPW Delivered Lumens (Example: L16= 16 x 72 = 1,152 Lumens)
