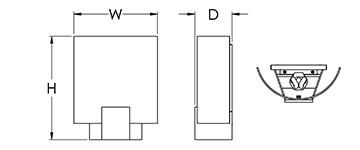

DIMENSIONS

W H D MC BASE MODEL NO.
9″ 11 1/8″ 4″ 6 1/4″ S3785-L12
9″ 16 1/4″ 4″ 8 1/8″ S3786-L16
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3785-L12 + 27K + PT BN + Option
S3786-L16 30K BA PB
35K BB PC
40K BC PN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2 Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey; FA-6 Tuscan]

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12 x 75 = 900 Lumens)
