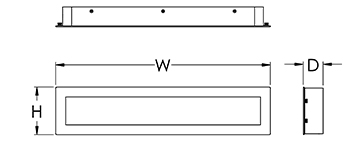

DIMENSIONS

W H D MC BASE MODEL NO.
28″ 6″ 3″ 14″ S3765-L16
38″ 6″ 3″ 18″ S3766-L24
50″ 6″ 3″ 24″ S3767-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Panels (3)
• Solid Aluminum Front
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3765-L16 + 27K + PT + Option
S3766-L24 30K BA
S3767-L32 35K BC
40K BN
FINISHES

BA Brushed Aluminum
BC Brushed Chrome
BN Brushed Nickel
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16 x 69 = 1,104 Lumens)
