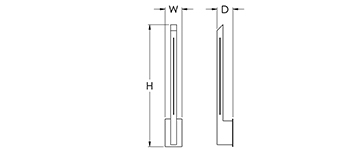

DIMENSIONS

W H D MC BASE MODEL NO.
4 1/2″ 28 3/4″ 4″ 26 1/4″ S3655-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3655-L24 + 27K + PT + Option
30K BA
35K
40K
FINISHES

BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
CT Copper Touch
CC Custom Painted Finish
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 88 LPW Delivered Lumens (Example: L24= 24 x 88 = 2,112 Lumens)
