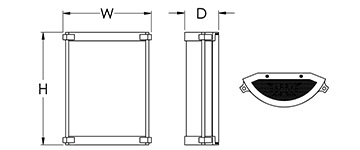

DIMENSIONS

W H D MC BASE MODEL NO.
10 1/2″ 13 1/4″ 4″ 6 5/8″ S3580-L18
10 1/2″ 20″ 4″ 10″ S3581-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Top and Bottom Diffuser – Standard White Perforated Metal
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3580-L18 + 27K + PT CT + Option
S3581-L32 30K BA GT
35K BB NT
40K BN ZT
PB PN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BN Brushed Nickel
CT Copper Touch
GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
PB Polished Brass
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L18= 18 x 75 = 1,350 Lumens)
