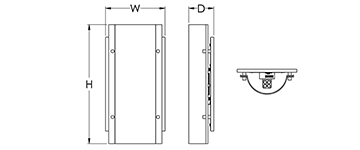

DIMENSIONS

W H D MC BASE MODEL NO.

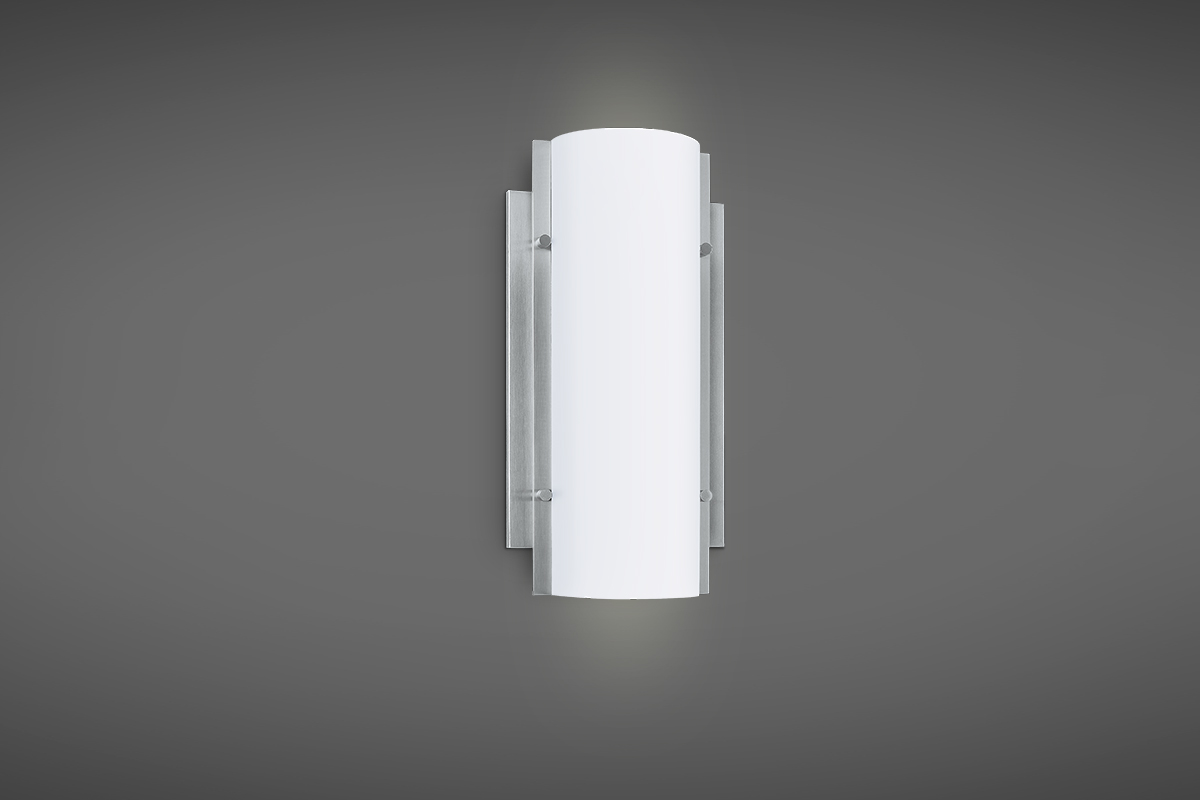

9 1/2″ 19″ 4″ 8 1/2″ S3550-L24
9 1/2″ 19″ 4″ 8 1/2″ S3555-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic

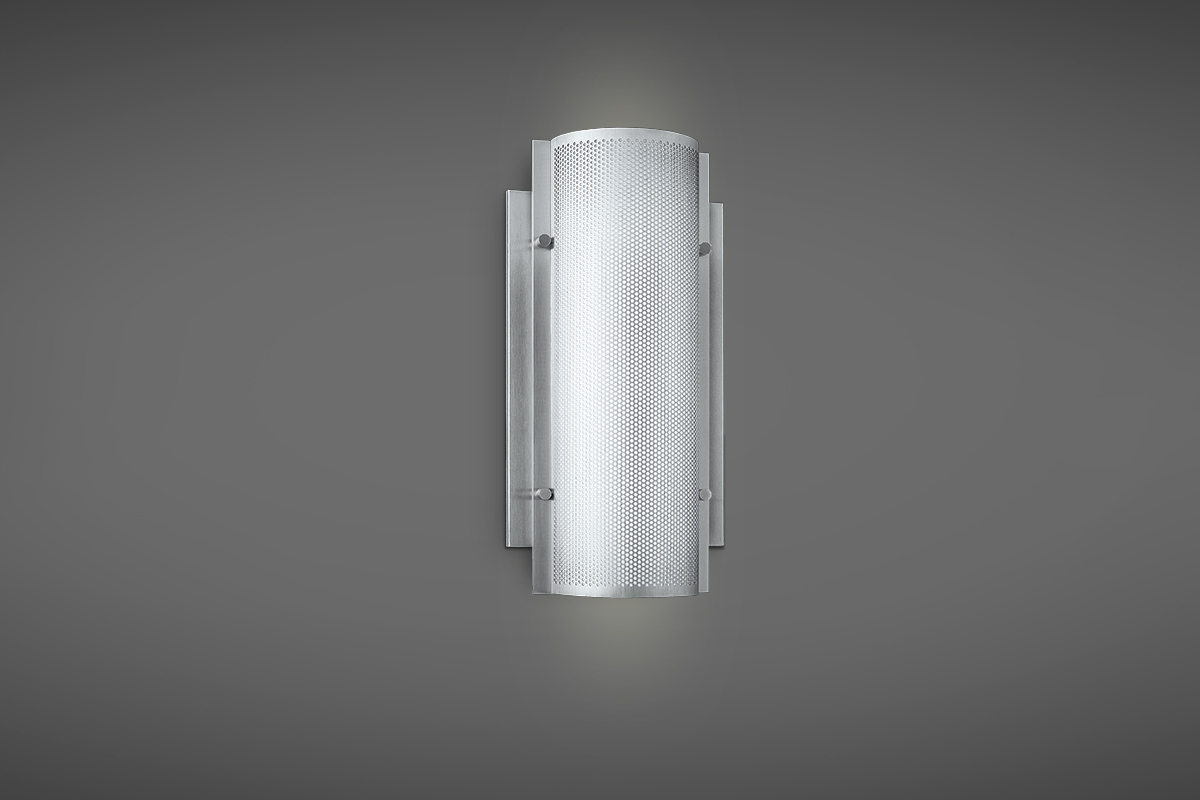

• Perforated Brushed Aluminum Metal Diffuser with Mylar Backing (Standard S3555)
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3550-L24 + 27K + PT + Option
S3555-L24 30K BA
35K BC
40K BN
PC
PN
FINISHES
BA Brushed Aluminum
BC Brushed Chrome
BN Brushed Nickel		 PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
BTL Bottom Lens
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L24= 24W x 75LPW = 1,800 Lumens)
