Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 24″ | 4 1/2″ | 5 1/2″ | 12″ | S3515-L16 |
| 36″ | 4 1/2″ | 5 1/2″ | 18″ | S3516-L24 |
| 48″ | 4 1/2″ | 5 1/2″ | 24″ | S3517-L32 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

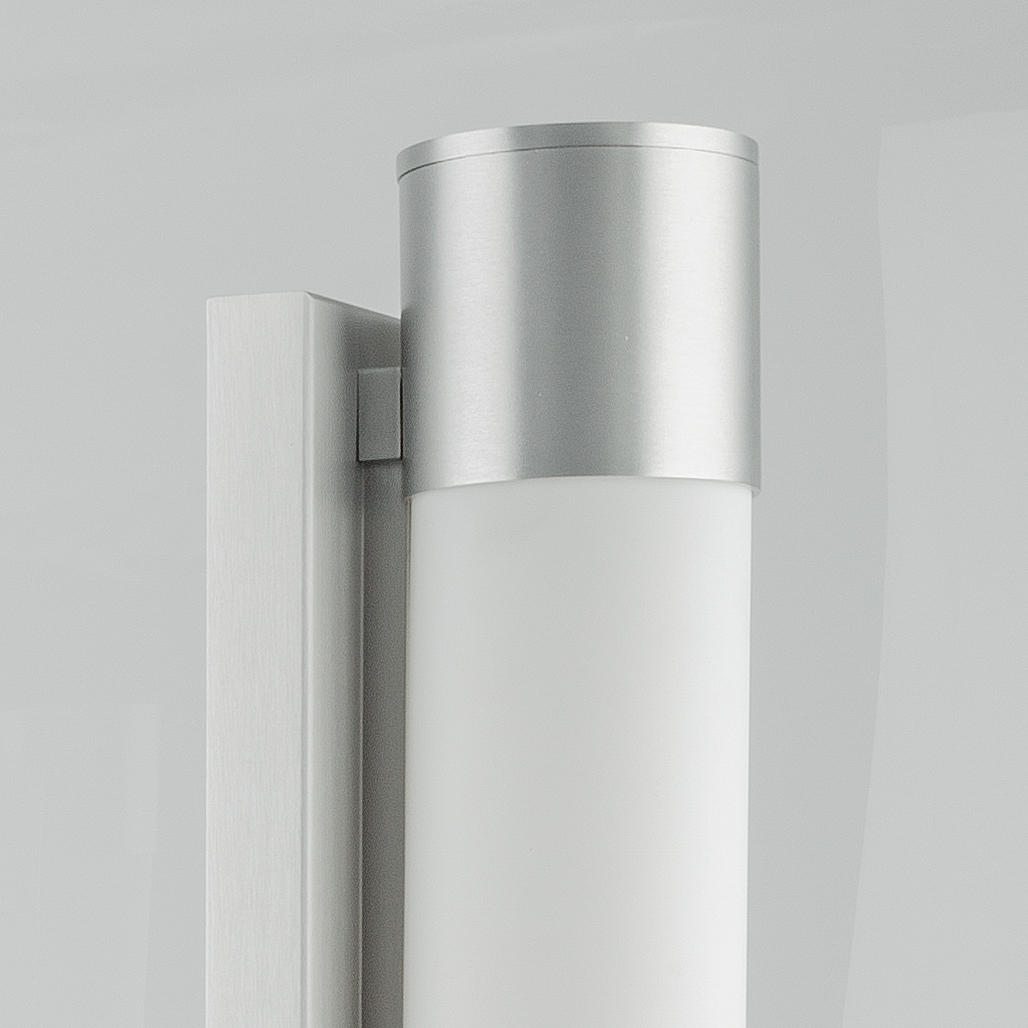

FEATURES
• Opal Matte Acrylic
• Solid Aluminum End Caps
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3515-L16 | + | 27K | + | PT | + | Option |
| S3516-L24 | 30K | BA | ||||
| S3517-L32 | 35K | BB | ||||
| 40K | BC | |||||
| BN |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16W x 69LPW = 1,104 Lumens)
