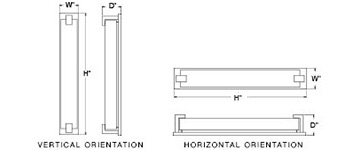

DIMENSIONS

W H D MC BASE MODEL NO.
4 3/4″ 18″ 4″ 9″ S3445-L16
4 3/4″ 30″ 4″ 15″ S3446-L24
24″ 4 3/4″ 4″ 12″ S3447-L18
36″ 4 3/4″ 4″ 18″ S3448-L24
48″ 4 3/4″ 4″ 24″ S3449-L36
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Clear Edged Glass with Interior Frost
• Metal Trim
• May be Mounted Vertically or Horizontally
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3445-L16 + 27K + PT + Option
S3446-L24 30K CC
S3447-L18 35K BA
S3448-L24 40K NT
S3449-L36 GT
CT
FINISHES

BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
CT Copper Touch
CC Custom Painted Finish
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
FO Filagree Overlay

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L16= 16 x 81 = 1,296 Lumens)
