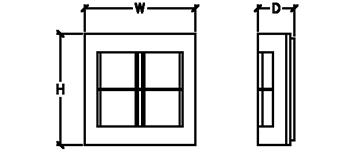

DIMENSIONS

W H D MC BASE MODEL NO.
12″ 12″ 4″ 6″ S3335-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3335-L18 + 27K + PT + Option
30K BA
35K
40K
FINISHES

BA Brushed Aluminum PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
BTL Bottom Lens
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 61 LPW Delivered Lumens (Example: L18= 18 x 61 = 1,098 Lumens)
