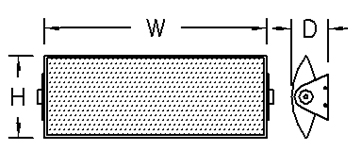

DIMENSIONS

W H D MC BASE MODEL NO.
19″ 9″ 4″ 4 1/2″ S3290-L18
25 1/4″ 9″ 4″ 4 1/2″ S3291-L24
38″ 9″ 4″ 4 1/2″ S3292-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Perforated Metal Diffuser with Opal Matte Acrylic Lens
• Polished Chrome End-Plates Standard Custom Metal Finishes Available – (Consult Factory)
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3290-L18 + 27K + PT + Option
S3291-L24 30K
S3292-L32 35K
40K
FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch		 CT Copper Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L18= 18W x 69LPW = 1,242 Lumens)
