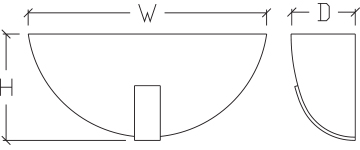

DIMENSIONS

W H D MC BASE MODEL NO.
14″ 6″ 4″ 3″ S3235-L09
18″ 9″ 4″ 4 1/2″ S3236-L14
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• All Metal Unit
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3235-L09 + 27K + PT + Option
S3236-L14 30K PB
35K PC
40K
FINISHES

PB Polished Brass
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L09= 9 x 81 = 729 Lumens)
