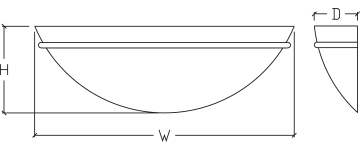

DIMENSIONS

W H D MC BASE MODEL NO.
18″ 9″ 4″ 4 1/2″ S3205-L14
18″ 9″ 9 1/2″ 4 1/2″ S3206-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens
• ADA Compliant (Only S3205)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3205-L14 + 27K + PT + Option
S3206-L18 30K PB
35K PC
40K
FINISHES
PB Polished Brass
PC Polished Chrome		 PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L14= 14W x 81LPW = 1,134 Lumens)
