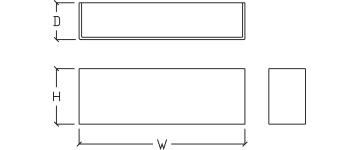

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 12″ | 6″ | 4″ | 3″ | S3155-L18 |
| 18″ | 6″ | 4″ | 3″ | S3156-L24 |
| 24″ | 6″ | 4″ | 3″ | S3157-L32 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Solid Metal Front
• Top and Bottom Clear Frosted Acrylic Lenses
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3155-L18 | + | 27K | + | PT | + | Option |
| S3156-L24 | 30K | PB | ||||
| S3157-L32 | 35K | PC | ||||
| 40K |
FINISHES
| PB Polished Brass PC Polished Chrome |
PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 65 LPW Delivered Lumens (Example: L18= 18W x 65LPW = 1,170 Lumens)
