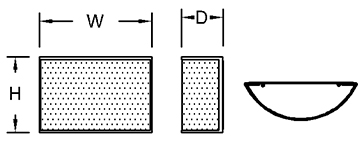

DIMENSIONS

W H D MC BASE MODEL NO.
12″ 8″ 4″ 4″ S3125-L14
16″ 8″ 8 1/2″ 4″ S3126-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

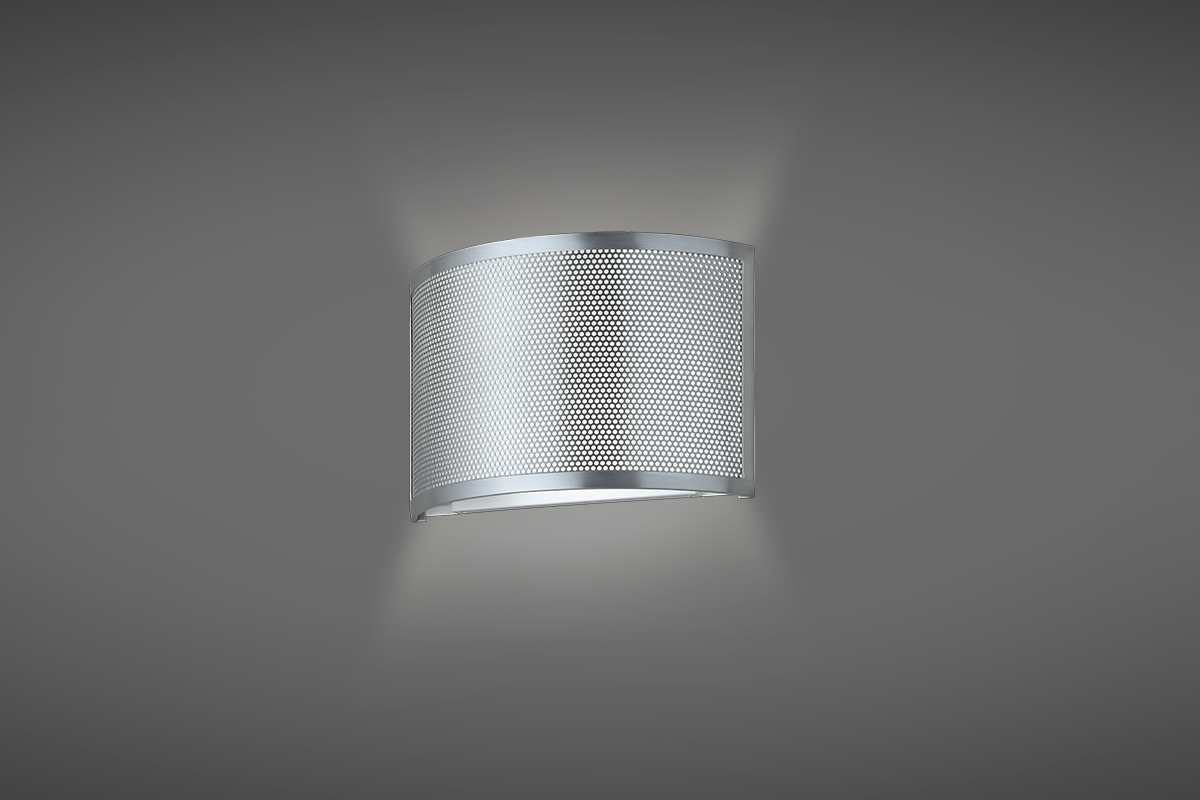

• Perforated Metal and Formed Opal Acrylic
• Energy Star Qualified (120V Only)
• ADA Compliant (Only S3125)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3125-L14 + 27K + PT + Option
S3126-L18 30K BA
35K PB
40K PC
FINISHES

BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
CT Copper Touch
CC Custom Painted Finish
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
BTL Bottom Lens
TPL Top Lens

LIGHT OUTPUT

LXX = ~ 65 LPW Delivered Lumens (Example: L14= 14 x 65 = 910 Lumens)
