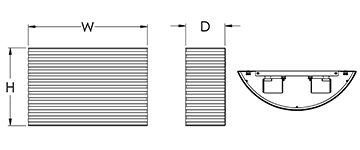

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 12″ | 7″ | 4″ | 3 1/2″ | S3123-L14 |
| 16″ | 8″ | 8 1/2″ | 4″ | S3124-L18 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Solid Metal Front
• Acrylic Top and Bottom Covers
• ADA Compliant (Only S3123)
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3123-L14 | + | 27K | + | PT | + | Option |
| S3124-L18 | 30K | BA | ||||
| 35K | BN | |||||
| 40K |
FINISHES
| BA Brushed Aluminum BN Brushed Nickel |
PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 63 LPW Delivered Lumens (Example: L14= 14W x 63LPW = 882 Lumens)
