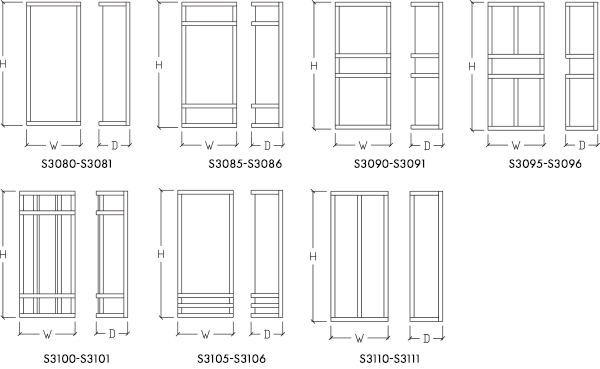

DIMENSIONS

W H D MC BASE MODEL NO.

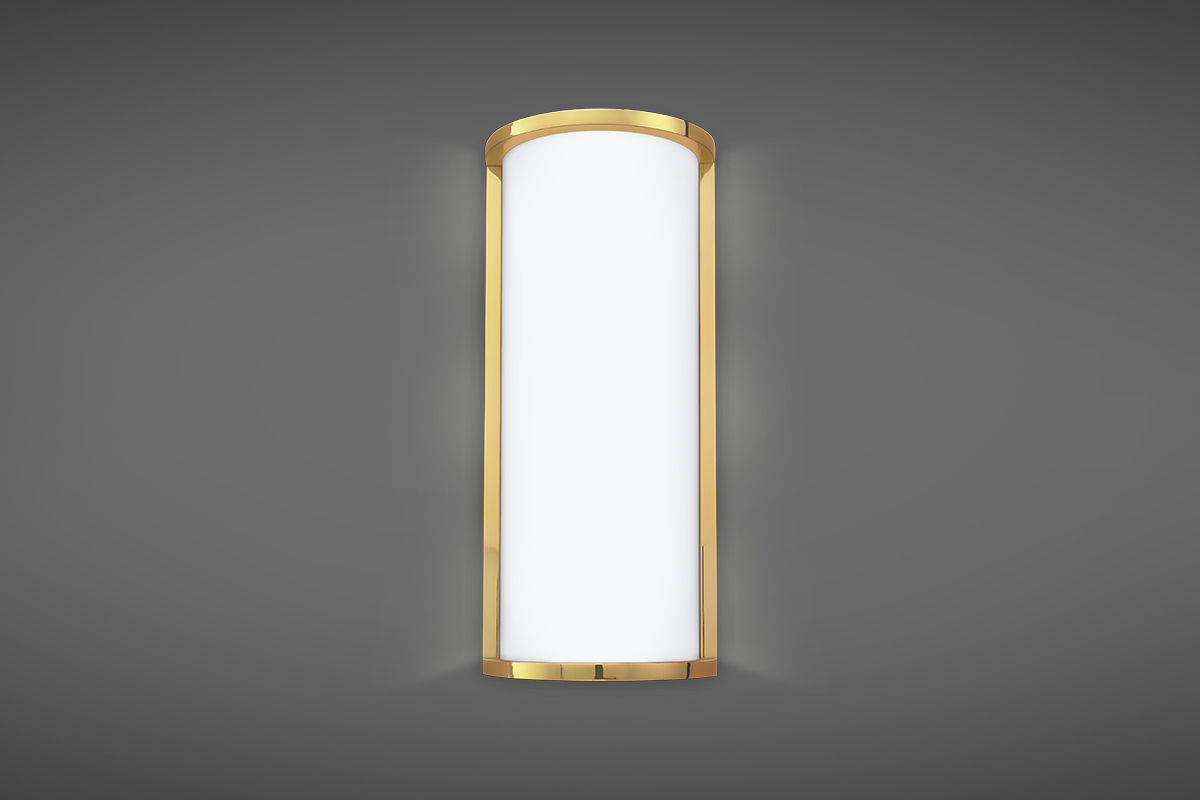

7″ 16″ 4″ 8″ S3080-L14
9″ 20″ 5 1/2″ 10″ S3081-L24
7″ 16″ 4″ 8″ S3085-L14
9″ 20″ 5 1/2″ 10″ S3086-L24
7″ 16″ 4″ 8″ S3090-L14
9″ 20″ 5 1/2″ 10″ S3091-L24
7″ 16″ 4″ 8″ S3095-L14
9″ 20″ 5 1/2″ 10″ S3096-L24

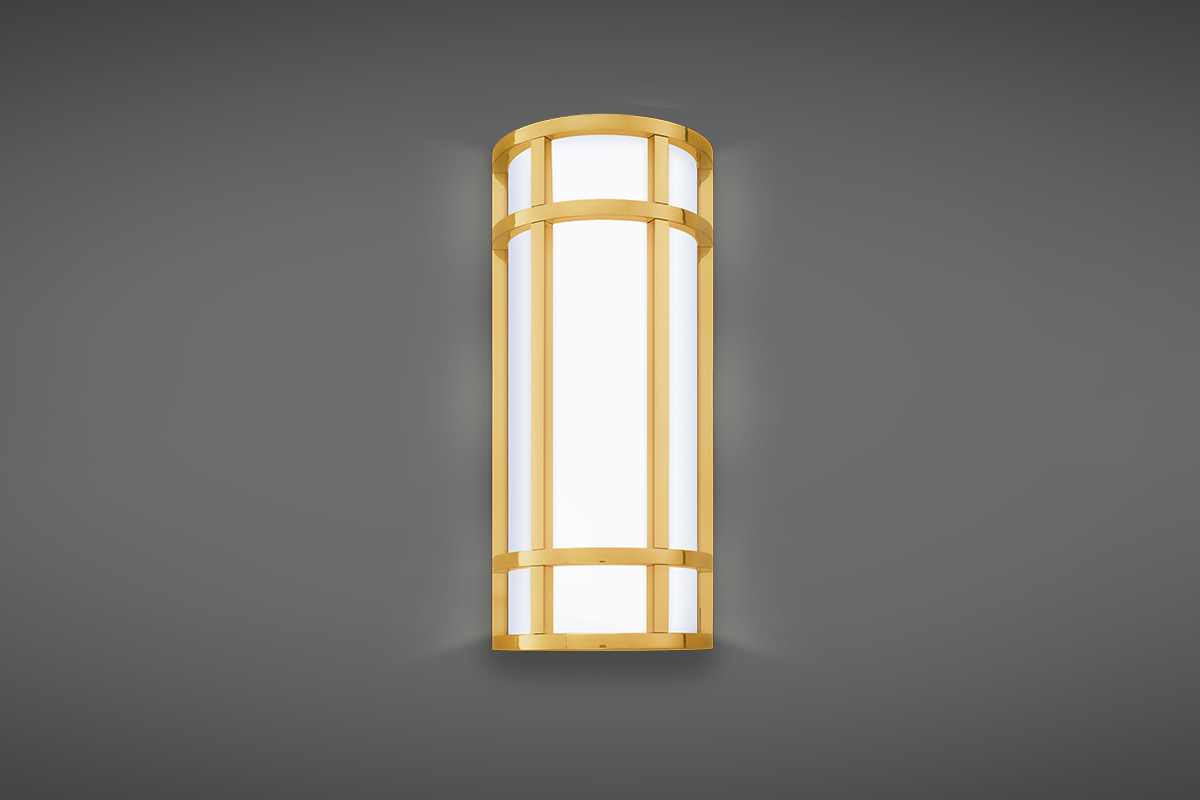

7″ 16″ 4″ 8″ S3100-L14
9″ 20″ 5 1/2″ 10″ S3101-L24
7″ 16″ 4″ 8″ S3105-L14
9″ 20″ 5 1/2″ 10″ S3106-L24

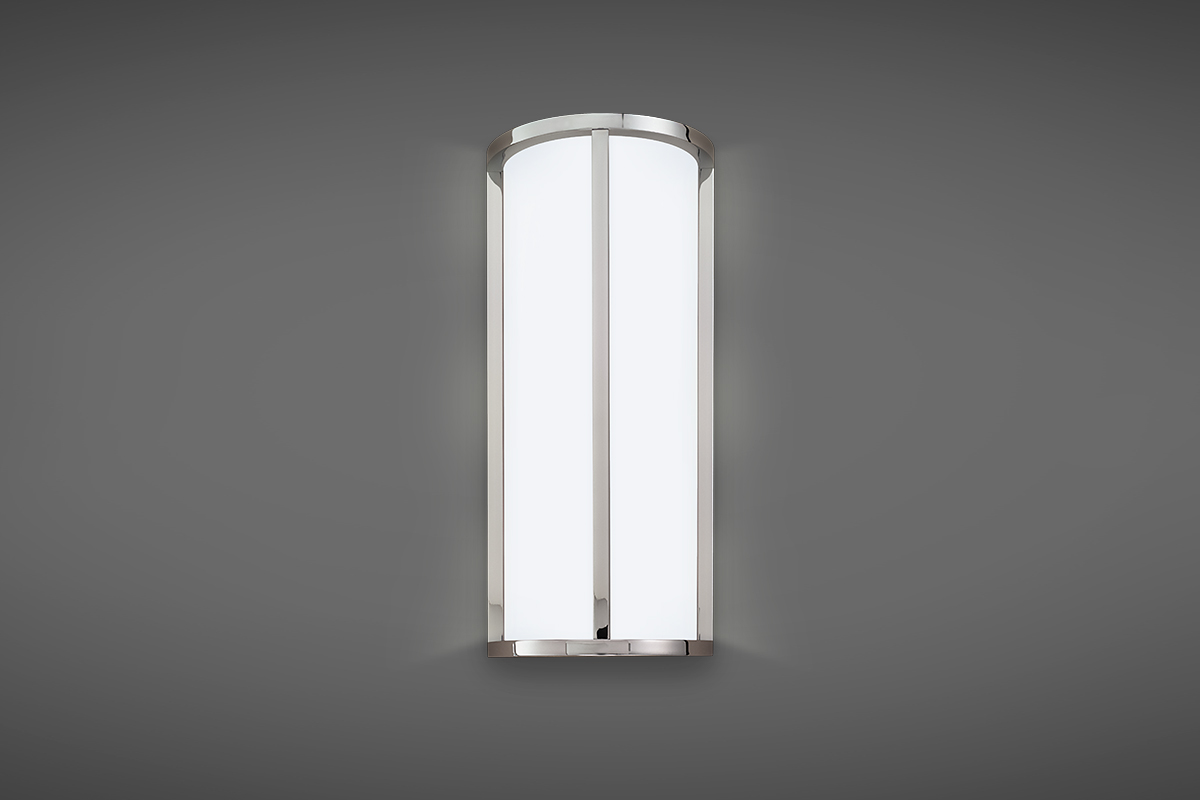

7″ 16″ 4″ 8″ S3110-L14
9″ 20″ 5 1/2″ 10″ S3111-L24
ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3080-L14 + 27K + PT + Option
S3081-L24 30K BA
S3085-L14 35K BB
S3086-L24 40K BC
S3090-L14 PB
S3091-L24 PC
S3095-L14
S3096-L24
S3100-L14
S3101-L24
S3105-L14
S3106-L24
S3110-L14
S3111-L24
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
PB Polished Brass
PC Polished Chrome
PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L14= 14 x 69 = 966 Lumens)

SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant (Only S3080, S3085, S3090, S3095, S3100, S3105, and S3110)
• LED 0-10V Dimming Driver
