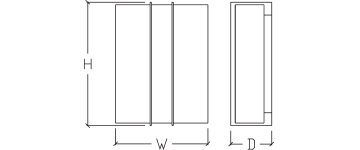

DIMENSIONS

W H D MC BASE MODEL NO.
9″ 12″ 4″ 5 3/4″ S3003-L14
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Diffuser
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3003-L14 + 27K + PT PB + Option
30K AP PC
35K BA PN
40K BC CC
FINISHES

AP Aged Pewter
BA Brushed Aluminum
BC Brushed Chrome
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
CC Custom Painted Finish
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
PMD Perforated Metal Diffuser
WOG Opal Glass Diffuser
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2 Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey; FA-6 Tuscan]

LIGHT OUTPUT

LXX = ~ 88 LPW Delivered Lumens (Example: L14= 14 x 88 = 1,232 Lumens)
