| W | H | X | BASE MODEL NO. |
| 10″ | 96″ | 48″ | S2B83-L48 |
| 10″ | 120″ | 72″ | S2B85-L72 |
| 10″ | 120″ | 96″ | S2B86-L96 |
Drivers: 0-10V dimming to 1%, 120/277 for both Cylinder and Downlight (on separate circuits)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

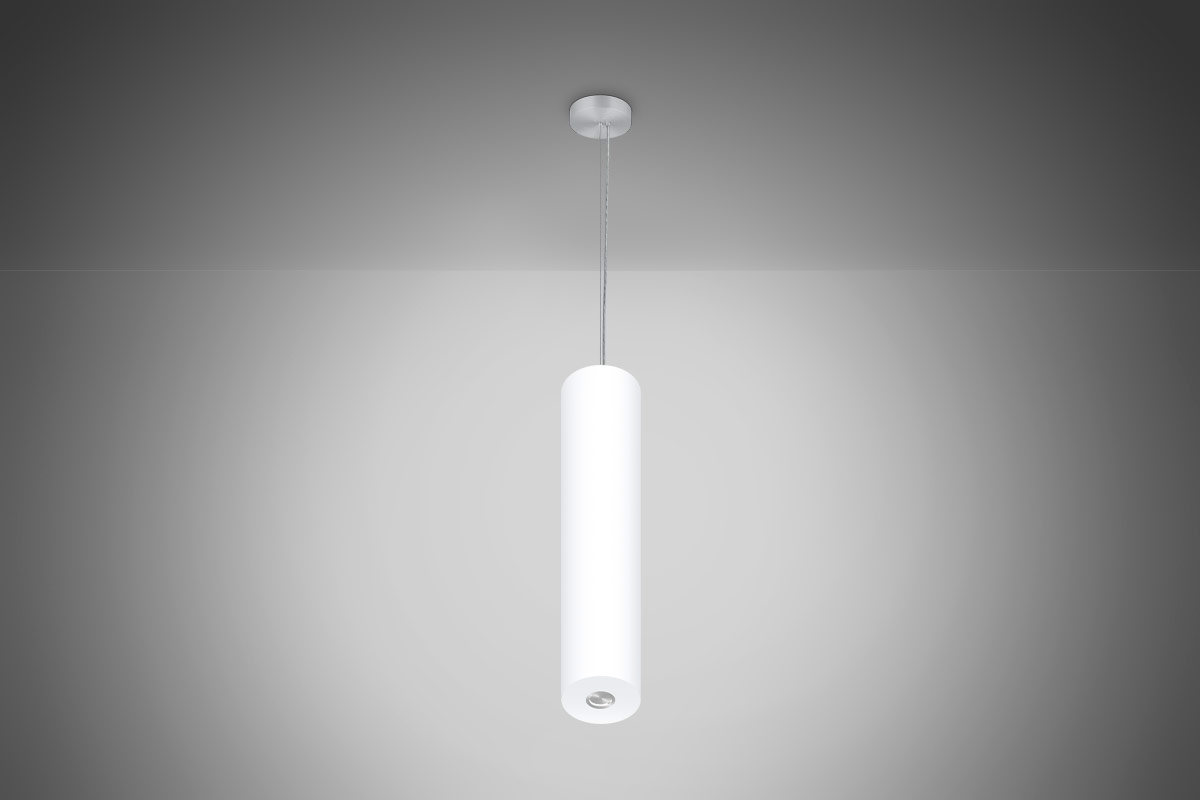

• Opal Matte Acrylic Cylinder
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• Downlight and Cylinder Core May Be Wired to Separate Control Circuits
• Drivers Mounted in Canopy
• LED 0-10V Dimming Driver
Model No. + Downlight + Lamp Code + Finish + OA + Option Code
| S2B83-L48 | + | ____* | + | 27K | + | PT | ZT | + | OA | + | Option |
| S2B85-L72 | D18N | 30K | BA | CT | |||||||
| S2B86-L96 | D18M | 35K | BB | TT | |||||||
| D18W | 40K | BN | PWT | ||||||||
| NT | BST | ||||||||||
| GT | CC |
____* = if left blank – no downlight
| BA Brushed Aluminum BB Brushed Brass BN Brushed Nickel NT Nickel Touch |
GT Gold Touch ZT Bronze Touch CT Copper Touch TT Toffee Touch |
PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | ||

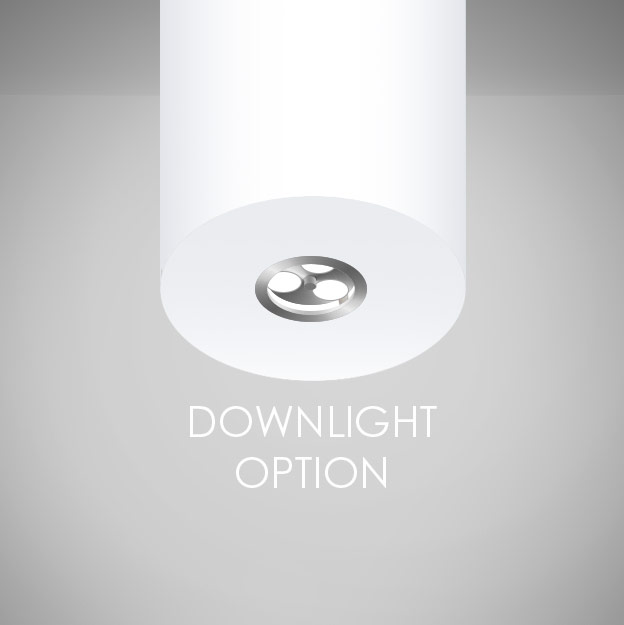

D18N Narrow (30 degrees)
D18M Medium (45 degrees)
D18W Wide (60 degrees)
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
1S Single Stem
BK1 Black Cord with (1) Adjustable Aircraft Cables
WH1 White Cord with (1) Adjustable Aircraft Cables
Cylinder Core Lighting Lumens: LXX = LED Wattage, therefore L24 = LED 24W. The typical lumen output is ~109LPW, so therefore L24 would deliver 2,616L. Use this formula to estimate delivered lumens based on the LXX number for each length.
Downlight Lumens: DxxW indicates Downlight wattage and beam spread. For the downlight, typical lumen output is 127LPW, so a D12W would deliver 1,524L in a wide beam pattern.
