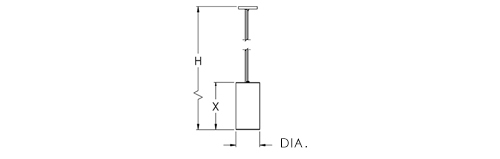

| Dia | H | X | BASE MODEL NO. |
| 6″ | 60″ | 9.5″ | S2A95-L16-D12 |
Drivers: 0-10V dimming to 1%, 120/277 for both Cylinder and Downlight (on separate circuits)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• LED 0-10V Dimming Drivers
Model No. + Downlight Option + Lamp Code + Finish + OA + Option Code
| S2A95-L16-D12 | + | N | + | 27K | + | PT | ZT | + | Option |
| M | 30K | BA | PWT | ||||||
| W | 35K | NT | BST | ||||||
| 40K | GT | CC | |||||||
| CT |
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch CT Copper Touch ZT Bronze Touch |
PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
1S Single Stem
N Narrow (30 degrees)
M Medium (45 degrees)
W Wide (60 degrees)
LXX = ~ 100 LPW Cylinder + ~90LPW (Downlight) Delivered Lumens (Example: [L16= 16W x 100LPW = 1,600 Lumens] + [D12= 12W x 90LPW = 1,080 Lumens] = 2,680 Total Lumens)
