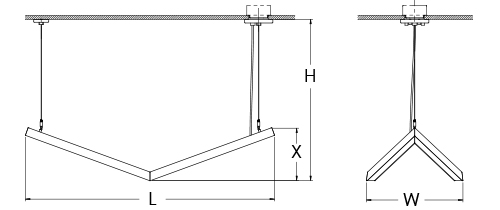

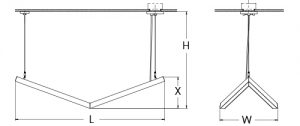

DIMENSIONS

L W X H BASE MODEL NO.
41 3/4″ 16″ 8 3/4″ 96″ S2A40-L32
54″ 21″ 11″ 96″ S2A41-L48
66″ 24″ 13″ 96″ S2A42-L64
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

• Clear Silver Braided Cord with (2) Adjustable Aircraft Cables
• Continuous illuminated downlight lens
• Mitered and Welded Corners
• Constructed of Extruded Aluminum
• LED 0-10V Dimming Driver (in remote box above ceiling)

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish + OA + Option Code

S2A40-L32 + 27K + PT CT + OA + Option
S2A41-L48 30K BA PWT
S2A42-L64 35K NT BST
40K GT TT
ZT CC
FINISHES

BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96

LIGHT OUTPUT

LXX = ~ 92 LPW Delivered Lumens (Example: L24= 24 x 92 = 2,994 Lumens)
