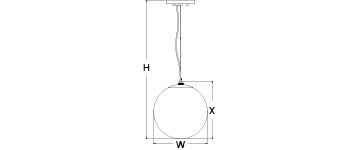

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 14″ | 60″ | 14 3/4″ | S2A00-L24 |
| 18″ | 60″ | 18 3/4″ | S2A01-L32 |
| 24″ | 60″ | 18 3/4″ | S2A02-L48 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Clear Silver Braided Cord with Adjustable Aircraft Cable
• Opal Matte Acrylic (NOTE: 24” Globe has a seam at the equator.)
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
| S2A00-L24 | + | 27K | + | PT | CT | + | OA | + | Option |
| S2A01-L32 | 30K | CC | ZT | ||||||
| S2A02-L48 | 35K | BA | PWT | ||||||
| 40K | NT | BST | |||||||
| GT |
FINISHES
| BA Brushed Aluminum ZT Bronze Touch NT Nickel Touch GT Gold Touch CT Copper Touch |
PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OMG – Opal Matte Glass (Available only on 14” and 18”)
LIGHT OUTPUT
LXX = ~ 95 LPW Delivered Lumens (Example: L24= 24 x 95 = 2,280 Lumens)
