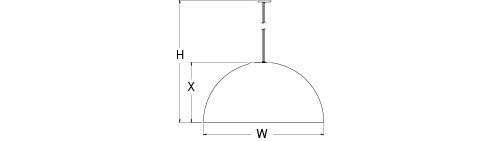

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 14″ | 48″ | 7″ | S2945-1N22 |
| 14″ | 48″ | 7″ | S2945-L12A |
| 18″ | 48″ | 9″ | S2946-1N22 |
| 18″ | 48″ | 9″ | S2946-L16A |
| 22″ | 48″ | 11″ | S2947-1N22 |
| 22″ | 48″ | 11″ | S2947-L20A |
SPECIFICATIONS
Voltage: 120V Only (For alternate voltage options, please contact factory.)
Dimming: ELV Dimming (LED ONLY) (For alternate dimming options, please contact factory.)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Clear Silver Braided Cord
• Seamless Aluminum Material
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Exterior Finish + Interior Finish + OA + Option Code
EXTERIOR FINISHES
PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish
*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
INTERIOR FINISHES
PT Powder Coated Finishes*
WH Powder Coated White
SV Powder Coated Silver
JS Powder Coated Jewel Shimmer
*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
BK0 Black Cord
WH0 White Cord
