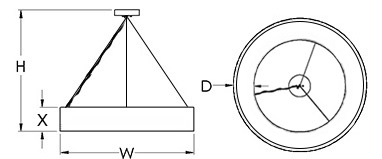

DIMENSIONS

W H D X BASE MODEL NO.
3′ 96″ 5″ 5″ S2890-L72
4′ 96″ 5″ 5″ S2891-L96
5′ 96″ 5″ 5″ S2892-L124
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Acrylic Lens on (3) Sides (Including Top)
• Solid Aluminum Material
• Canopy Mounted Drivers
• Clear Silver Braided Cord with Adjustable Aircraft Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA + Option Code

S2890-L72 + 27K + PT CT + OA + Option
S2891-L96 30K CC ZT
S2892-L124 35K BA PWT
40K NT BST
GT
FINISHES

BA Brushed Aluminum
ZT Bronze Touch
NT Nickel Touch
GT Gold Touch
CT Copper Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 99 LPW Delivered Lumens (Example: L72= 72 x 99 = 7,128 Lumens)
