Print This PageDIMENSIONS
| W | H | D | X | BASE MODEL NO. |

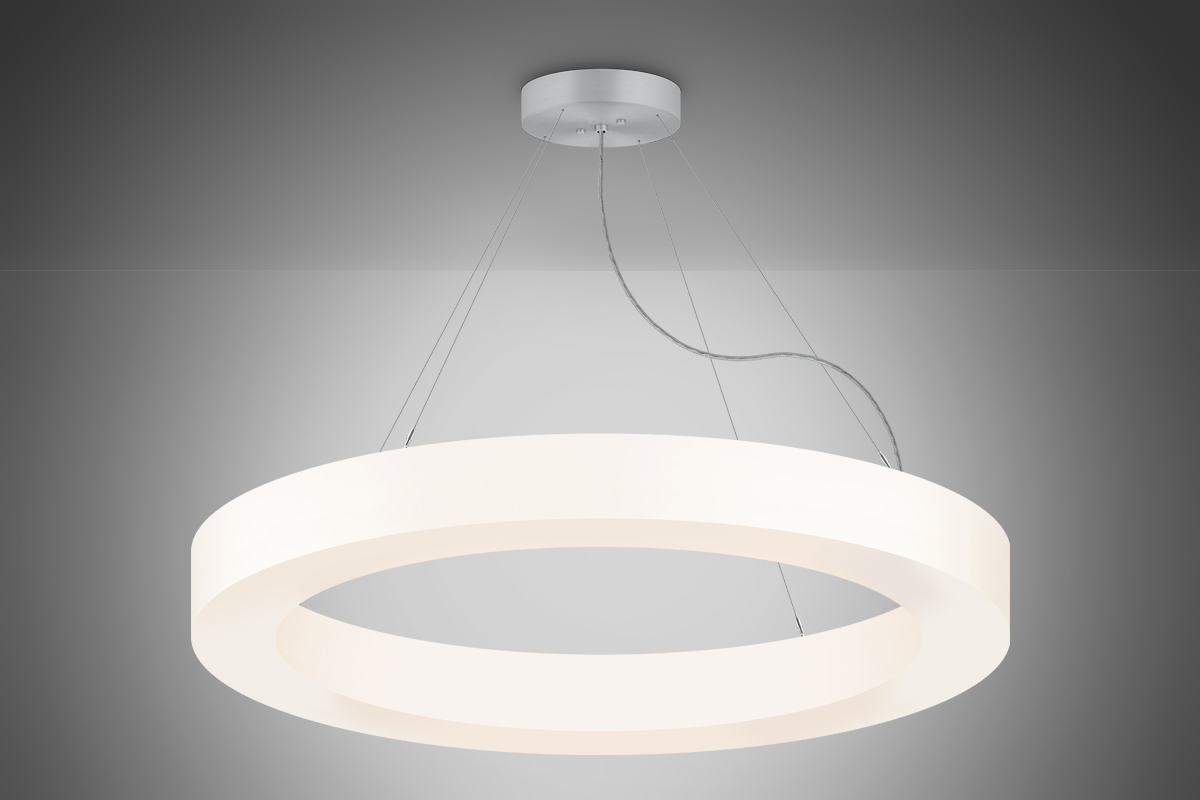

| 2′ | 96″ | 5″ | 5″ | S2865-L42 |
| 3′ | 96″ | 5″ | 5″ | S2866-L72 |
| 4′ | 96″ | 5″ | 5″ | S2867-L96 |
| 5′ | 96″ | 5″ | 5″ | S2868-L124 |
| 6′ | 96″ | 5″ | 5″ | S2869-L144 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Glossy Opal Acrylic Lens on (3) Sides
• Solid Aluminum Material
• Canopy Mounted Drivers
• Clear Silver Braided Cord with Adjustable Aircraft Cables
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + OA + Option Code
| S2865-L42 | + | 27K | + | PT | CT | + | OA | + | Option |
| S2866-L72 | 30K | CC | ZT | ||||||
| S2867-L96 | 35K | BA | TT | ||||||
| S2868-L124 | 40K | NT | PWT | ||||||
| S2869-L144 | GT | BST |
FINISHES
| BA Brushed Aluminum ZT Bronze Touch NT Nickel Touch GT Gold Touch CT Copper Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
MCR Minimal Canopy – Remote Driver Option (4 Vertical Cables)
LIGHT OUTPUT
LXX = ~ 113 LPW Delivered Lumens (Example: L72= 72W x 113LPW = 8,136 Lumens)
