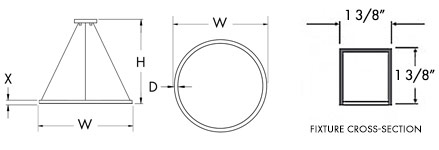

DIMENSIONS

W X D H BASE MODEL NO.
32″ 1 3/8″ 1 3/8″ 96″ S2790-D-L46†
36″ 1 3/8″ 1 3/8″ 96″ S2791-D-L62†
48″ 1 3/8″ 1 3/8″ 96″ S2792-D-L78†
60″ 1 3/8″ 1 3/8″ 96″ S2793-D-L90†
72″ 1 3/8″ 1 3/8″ 96″ S2794-D-L132†
96″ 1 3/8″ 1 3/8″ 96″ S2795-D-L192*
120″ 1 3/8″ 1 3/8″ 96″ S2796-D-L240*

†Central Canopy (Standard) and MCR Mounting Option Available
*MCR Mounting Only – No Central Canopy

SPECIFICATIONS

Driver: Constant Voltage, 0-10V Dimming, 120/277V
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Flexible Opal Matte Bottom Lens
• Solid Aluminum Material
• Central Canopy 8″ Dia. (S2790-S2794 Only)
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cables
• LED 0-10V Dimming Driver (in Canopy)

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + OA +  Option Code

S2790-D-L46 + 27K + PT CT + OA + Option
S2791-D-L62 30K BA TT
S2792-D-L78 35K NT PWT
S2793-D-L90 40K GT BST
S2794-D-L132 ZT CC
S2795-D-L192
S2796-D-L240
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
MCR Multi-Canopy – Remote Driver Option [(S2790-S2794) 4 Vertical Cables and Canopies – (S2795-S2796) 8 Vertical Cables and Canopies]

LIGHT OUTPUT

LXX = ~ 49.4 LPW Delivered Lumens (Example: L46= 46W x 49.4LPW = 2,272 Lumens)
