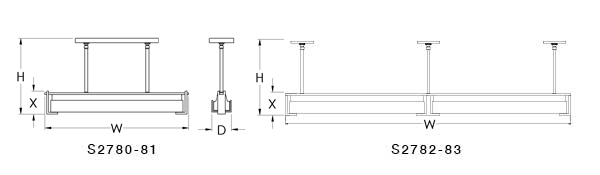

DIMENSIONS

W X D H BASE MODEL NO.
30″ 4 1/2″ 4″ 30″ S2780-L24
48″ 4 1/2″ 4″ 30″ S2781-L36
60″ 4 1/2″ 4″ 30″ S2782-L48
96″ 4 1/2″ 4″ 30″ S2783-L72
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Clear Edged Glass with Interior Frost
• Metal Trim
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S2780-L24 + 27K + PT CT + Option
S2781-L36 30K BA TT
S2782-L48 35K PC PWT
S2783-L72 40K NT BST
GT CC
ZT
FINISHES

BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
PWT Pewter Touch
TT Toffee Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

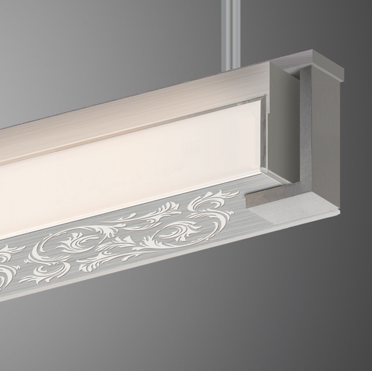

FO Filigree Overlay – For Alternative Designs, Consult Factory

Filigree Overlay
LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L24= 24 x 81 = 1,944 Lumens)
