DIMENSIONS:

W D H BASE MODEL NO.
3′ 2 3/4″ 48″ S2770-L24
4′ 2 3/4″ 48″ S2771-L32
5′ 2 3/4″ 48″ S2772-L40
6′ 2 3/4″ 48″ S2773-L48
8′ 2 3/4″ 48″ S2774-L64
10′ 2 3/4″ 48″ S2775-L80

Drawings indicate proportional scaling of nominal lengths:

3′
4′
5′
6′
8′
10′
Nominal Length + 2 End Caps = Actual Length
ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + End Cap + OA +  Mounting Code + Option Code

S2770-L24 + 27K + PT + FEC + OA + MCR + Option
S2771-L32 30K CC VEC LCI
S2772-L40 35K BA SEC CCI
S2773-L48 40K NT PCI†
S2774-L64 GT PCR†
S2775-L80 ZT
CT
TT
PWT
BST

†For Power-Over-Cable options consult factory for limitations.

FINISHES

Extruded Top Rail & Canopies/Driver Enclosures –
Powder Coatinged White (Standard)
End Caps –
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes
(Specify Color Code from the list of Powder Coating Finishes)

OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Emergency Battery Pack for LED Lighting (Remote Only)

LIGHT OUTPUT

LXX = ~ 89 LPW Delivered Lumens (Example: L48= 48W x 89LPW = 4,272 Lumens)

END CAP OPTIONS
BENFITS AND FEATURES

• Extruded Aluminum Housing w/ Opal Acrylic Lens
• Incremental Lengths to Meet the Needs of Your Project
• 5 End Cap Styles in Milled Aluminum
• 4 New Metal Finishes
• 4 Color Temperature Options
• 80+ CRI LEDS
• 5 Mounting Options
• For Horizontal or Angled Mounting Conditions (See Swivel Mount)
• 0-10V Dimming to 1%
• High Efficiency 120/277V Universal Driver
• >160 LPW Source Lumens
• Serviceable LED Tray
• Made in the USA

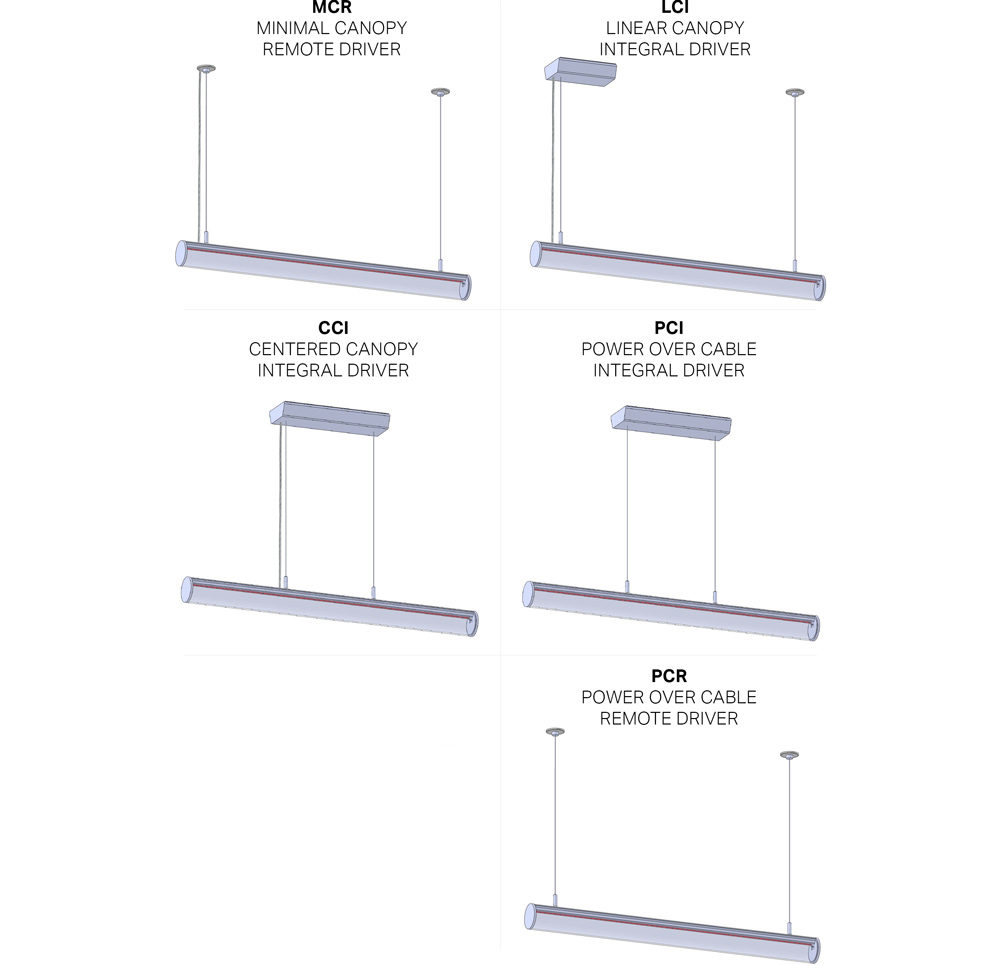

REMOTE DRIVER AND SURFACE DRIVER INFORMATION

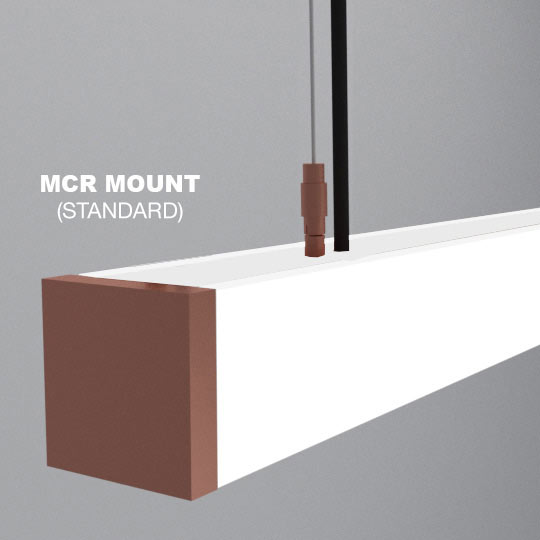

MCR – Minimal Canopy Option Utilizes Remote Driver In Enclosure
LCI – Linear Surface Canopy with Integral Driver for Mounting to a 4″ Standard J-Box
CCI – Centered Surface Canopy with Integral Driver for Mounting to a 4″ Standard J-Box
PCI – Linear Surface Canopy Utilizing Power Over Cables with Integral Driver for Mounting to a 4″ Standard J-Box (Consult Factory for Details and Limitations)

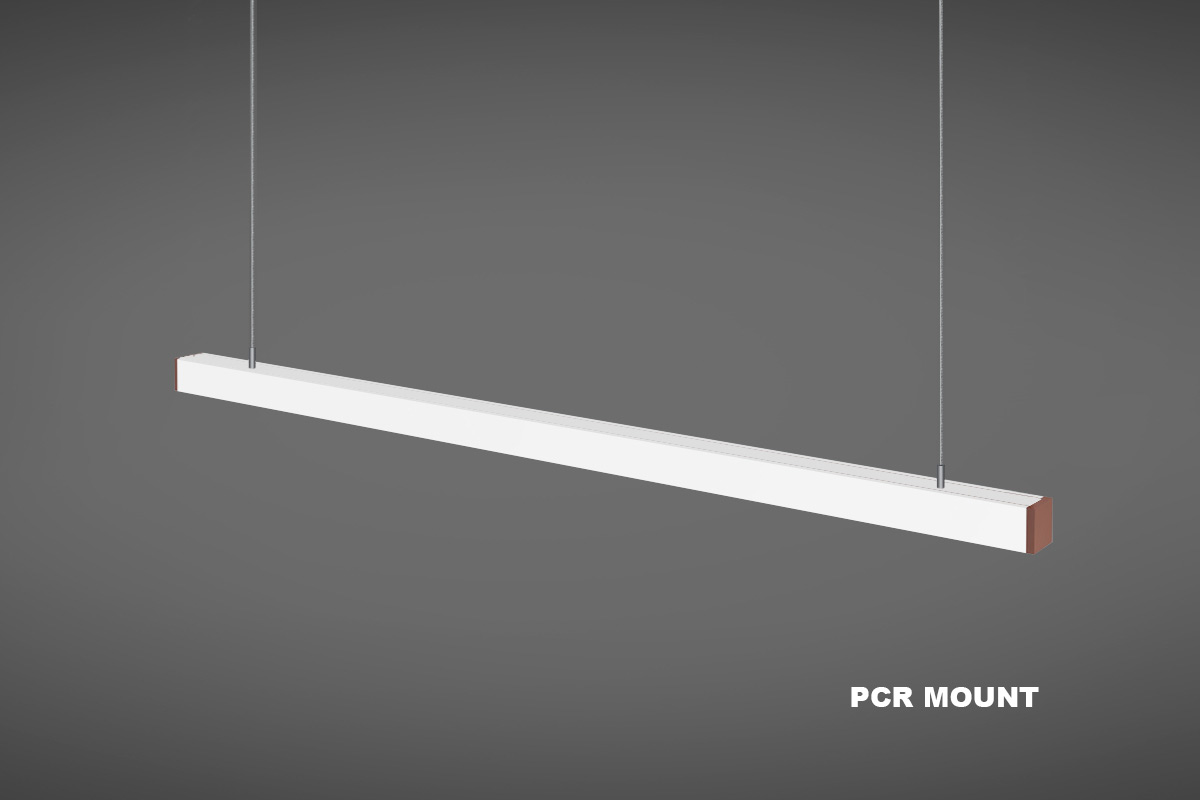

PCR – Power Over Cable with Remote Driver (Consult Factory for Details and Limitations) Fixed OAH, Max 4′-0″
