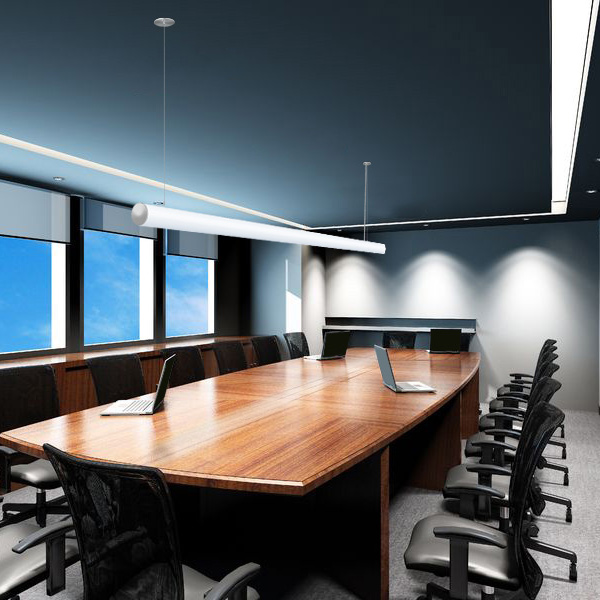

DIMENSIONS:

L D OA BASE MODEL NO.
3′ 3″ 48″ S2740
4′ 3″ 48″ S2741
5′ 3″ 48″ S2742
6′ 3″ 48″ S2743
8′ 3″ 48″ S2744
10′ 3″ 48″ S2745

Drawings indicate proportional scaling of nominal lengths:

3′
4′
5′
6′
8′
10′
Nominal Length + 2 End Caps = Actual Length
ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + End Cap + OA +  Mounting Code + Option Code

S2740-L24 + 27K + PT + FEC + OA + MCR + Option
S2741-L32 30K CC VEC LCI
S2742-L40 35K BA CEC CCI
S2743-L48 40K NT DEC PCI
S2744-L64 GT SEC PCR
S2745-L80 ZT
S2745-L80 CT

For Power-Over-Cable options consult factory for limitations.

FINISHES

Extruded Top Rail & Canopies/Driver Enclosures –
Powdercoated White (Standard)
End Caps –
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
CC Custom Painted Finish
PT Painted Finishes
(Specify Color Code from Our Standard Finish Chart)

OPTIONS

EML Emergency Battery Pack for LED Lighting (Remote Only)

LIGHT OUTPUT

LXX = ~ 89 LPW Delivered Lumens (Example: L48= 48 x 89 = 4272 Lumens)

END CAP OPTIONS

BENFITS AND FEATURES

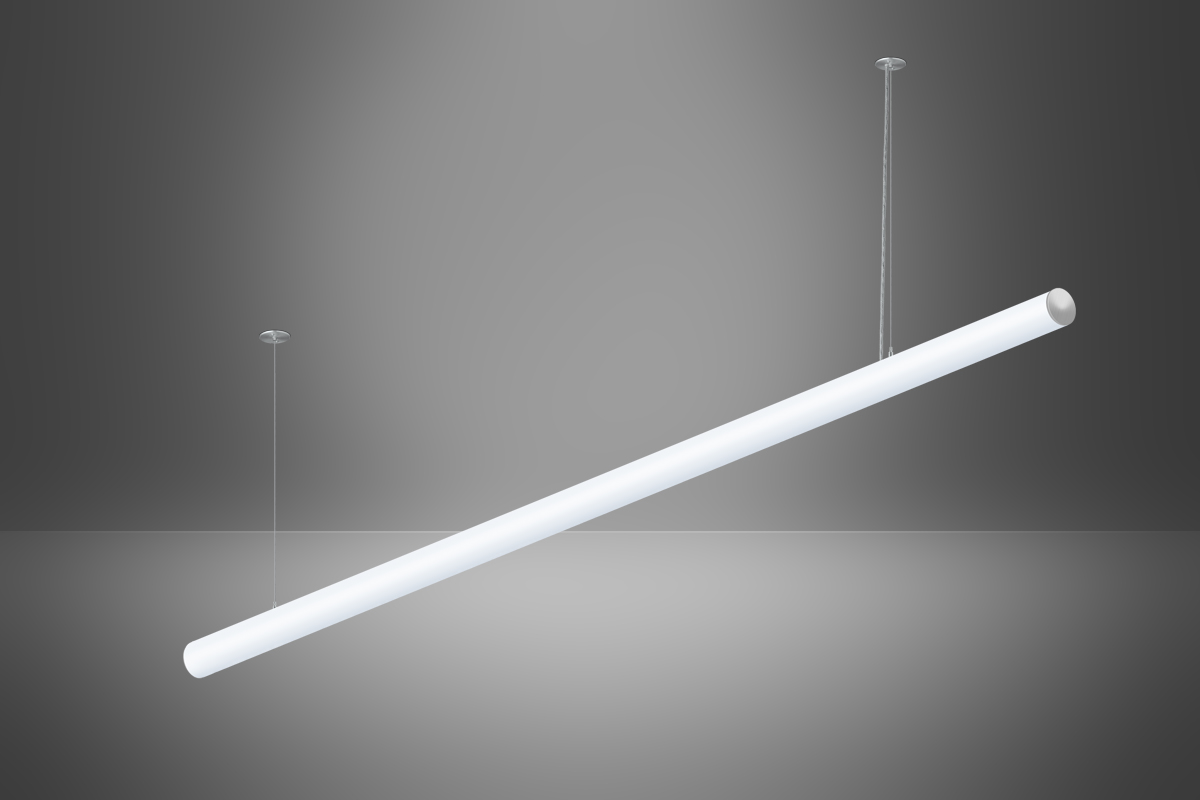

• Extruded Aluminum Housing w/ Opal Acrylic Lens
• Incremental Lengths to Meet the Needs of Your Project
• 5 End Cap Styles in Milled Aluminum
• 4 New Metal Finishes
• 4 Color Temperature Options
• 80+ CRI LEDS
• 5 Mounting Options

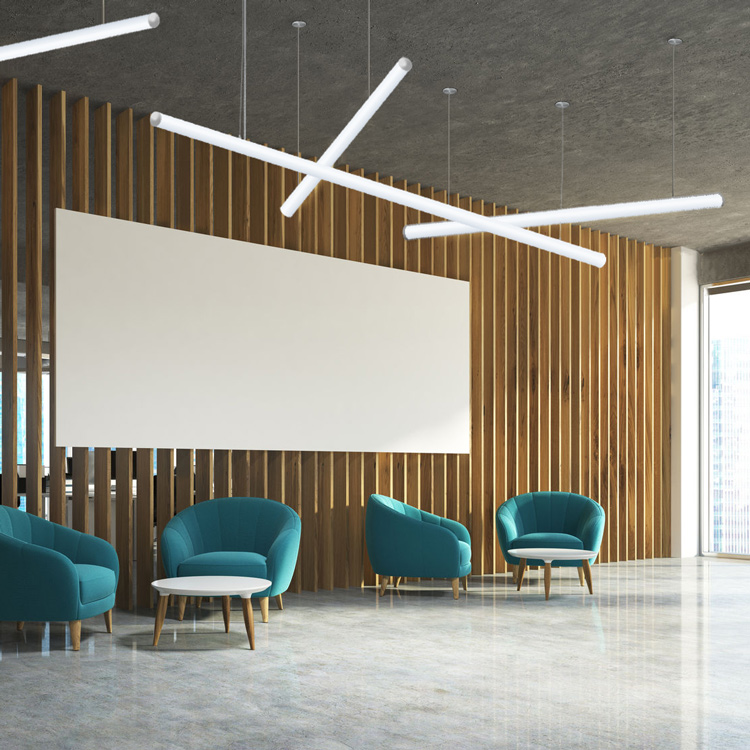

• For Horizontal or Angled Mounting Conditions (See Swivel Mount)
• Standard 10% 0-10V Dimming Included (1% Optional)
• High Efficiency 120/277V Universal Driver
• >160 LPW Source Lumens
• Serviceable LED Tray
 Made in the USA

REMOTE DRIVER AND SURFACE DRIVER INFORMATION

MCR – Minimal Canopy Option Utilizes Remote Driver In Enclosure
LCI – Linear Surface Canopy with Integral Driver for Mounting to a 4″ Standard J-Box
CCI – Centered Surface Canopy with Integral Driver for Mounting to a 4″ Standard J-Box
PCI – Linear Surface Canopy Utilizing Power Over Cables with Integral Driver for Mounting to a 4″ Standard J-Box (Consult Factory for Details and Limitations)
PCR – Power Over Cable with Remote Driver (Consult Factory for Details and Limitations)
