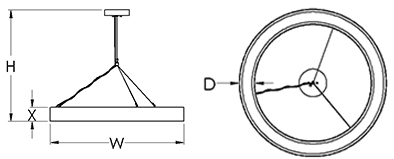

DIMENSIONS

W H D X BASE MODEL NO.
3′ 96″ 5″ 5″ S2710-L72
4′ 96″ 5″ 5″ S2711-L96
5′ 96″ 5″ 5″ S2712-L124
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Structural Blocking (by others) is required.

FEATURES

• Opal Matte Acrylic Bottom Lens
• Direct 85% – Indirect 15%
• Solid Aluminum Material
• Clear Silver Braided Cord with Adjustable Aircraft Cables
• Integral Driver
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + OA +  Option Code

S2710-L72 + 27K + PT + OA + Option
S2711-L96 30K BA
S2712-L124 35K CT
40K GT
NT
ZT
PWT
BST
FINISHES

BA Brushed Aluminum
CT Copper Touch
GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
PWT Pewter Touch
BST Blackened Steel Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L72= 72 x 69 = 4,968 Lumens)
