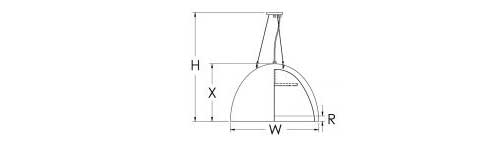

DIMENSIONS

W H X R BASE MODEL NO.
26″ 50″ 17″ 2 1/4″ S2690-L54
40″ 60″ 26″ 4 1/4″ S2691-L72
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES


• Available in multiple mixed color options E.G. – BL-KH (Exterior-Interior)
• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
• Integral Driver
• Opal Matte Acrylic Bottom Lens
• No Visible Hardware at the Aperture
• Spun Aluminum Shade
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Exterior Finish + Interior Finish + Option Code

S2690-L54 + 27K + PT GT + PT GT + Option
S2691-L72 30K CC ZT CC ZT
35K BA CT BA CT
40K NT NT
FINISHES

Exterior Finish
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
CC Custom Painted Finish
PT Powder Coated Finishes
Interior Trim Finish
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch
CC Custom Painted Finish
PT Powder Coated Finishes
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote)
OA Specify Overall Height of Fixture in Inches; E.G. – OA50
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables
FLL Flush Lens (No Interior Trim) 1/2″ Regress

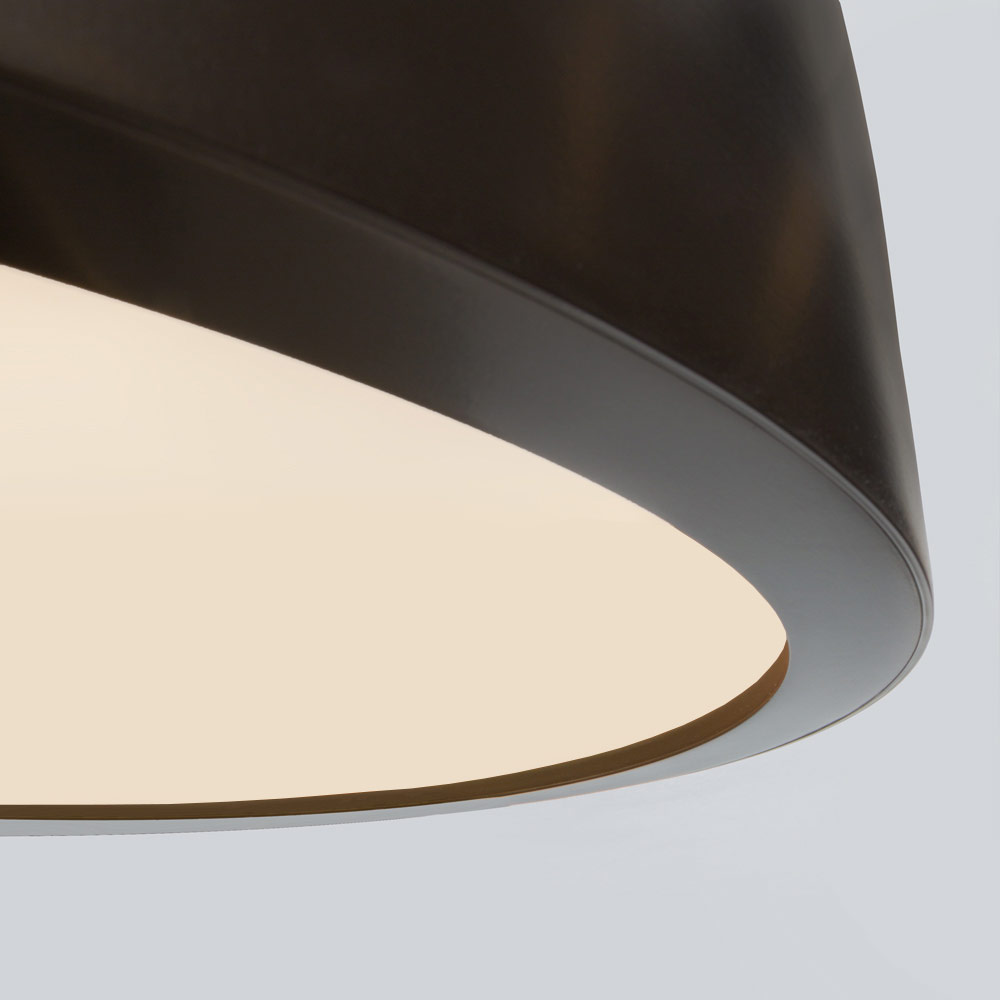

Flush Lens Option
LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L54= 54 x 85 = 4,590 Lumens)
