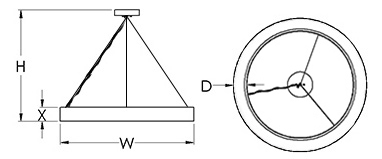

DIMENSIONS

W H D X BASE MODEL NO.
3′ 96″ 3.5″ 3.5″ S2660-L72
4′ 96″ 3.5″ 3.5″ S2661-L96
5′ 96″ 3.5″ 3.5″ S2662-L124
6′ 96″ 3.5″ 3.5″ S2663-L144
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens on (3) Sides (Including Top)
• Solid Aluminum Material
• Canopy Mounted Drivers
• Clear Silver Braided Cord with Adjustable Aircraft Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA + Option Code

S2660-L72 + 27K + PT + OA + Option
S2661-L96 30K CC
S2662-L124 35K BA
S2663-L144 40K NT
GT
CT
ZT
FINISHES

BA Brushed Aluminum
ZT Bronze Touch
NT Nickel Touch
GT Gold Touch
CT Copper Touch
CC Custom Painted Finish
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L72= 72 x 75 = 5,400 Lumens)
