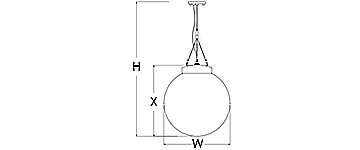

DIMENSIONS
W | H | X | BASE MODEL NO. |
14″ | 60″ | 14 3/4″ | S2650-L24 |
18″ | 60″ | 18 3/4″ | S2651-L32 |
22″ | 60″ | 22 3/4″ | S2652-L48 |
30″ | 60″ | 30 3/4″ | S2653-L64 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
• Opal Matte Acrylic Sphere (Note: 30″ Dia Acrylic Globe has Horizontal Seam at Equator.)
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
S2650-L24 | + | 27K | + | PT | + | OA | + | Option |
S2651-L32 | 30K | BA | ||||||
S2652-L48 | 35K | BC | ||||||
S2653-L64 | 40K | BN |
FINISHES
BA Brushed Aluminum BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
*(Specify Color Code from the list of Powder Coating Finishes) |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OMG Opal Matte Glass (Available only on 14″ and 18″)
LIGHT OUTPUT
LXX = ~ 128 LPW Delivered Lumens (Example: L24= 24W x 128LPW = 3,072 Lumens)
