Print This PageSUPERCEDED BY S2B90 Series
This product is still available to complete existing specifications, quotes, bids and active orders.
Please use the new part number for new applications and specifications.

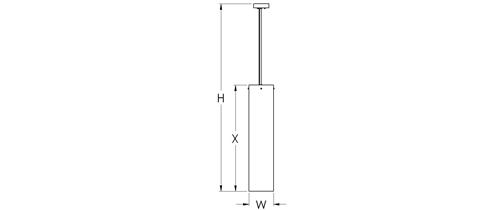

| W | H | X | BASE MODEL NO. |
| 12″ | 144″ | 48″ | S2630-L48 |
| 12″ | 144″ | 72″ | S2631-L72 |
| 12″ | 144″ | 96″ | S2632-L96 |
Driver: 0-10V dimming to 1%, 120/277 [Excluding Downlight]
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
• Opal Matte Acrylic
• Clear Silver Braided Cord with (1) Adjustable Air Craft Cable
• LED 0-10V Dimming Driver
Model No. + Lamp Code + CCT + Finish + OA + Option Code
| S2630-L48 | + | 27K | + | PT | + | OA | + | Option |
| S2631-L72 | 30K | BA | ||||||
| S2632-L96 | 35K | BB | ||||||
| 40K | BN |
| BA Brushed Aluminum BB Brushed Brass |
BN Brushed Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA204
FAA Faux Alabaster Acrylic (Hand Painted) (FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan)
SWC 35- Degree Swivel Canopy (Single Stem)
P38 Optional GU24 Socket for LED PAR38 Downlight 120 or 277V
1S Single Stem
LXX = ~ 83 LPW Delivered Lumens (Example: L48= 48W x 83LPW = 3,984 Lumens)
