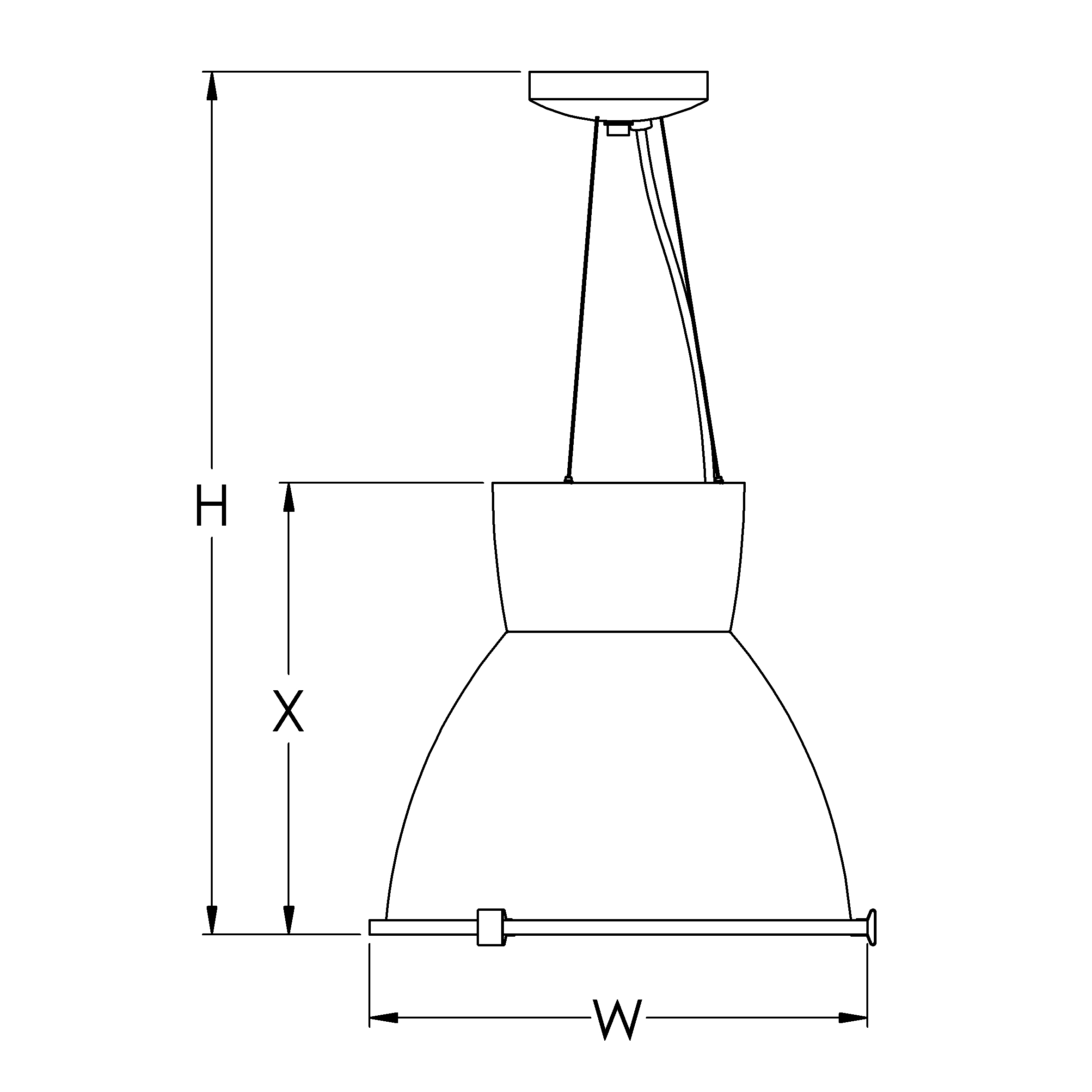

DIMENSIONS

W H X BASE MODEL NO.
17 3/8″ 90″ 15 1/2″ S2585-D-L36
17 3/8″ 90″ 15 1/2″ S2585-D-L52
17 3/8″ 90″ 15 1/2″ S2585-D-L64
17 3/8″ 90″ 15 1/2″ S2585-DI-L48-12U
17 3/8″ 90″ 15 1/2″ S2585-DI-L64-12U
17 3/8″ 90″ 15 1/2″ S2585-DI-L80-16U
13 1/2″ 90″ 14″ S2587-D-L36
13 1/2″ 90″ 14″ S2587-DI-L48-12U

DI = Direct/Indirect
D = Direct Only
U = Uplight

SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
• Clear Frosted Acrylic Bottom Lens
• Powdercoated Matte White Interior (Consult Factory for other options)
• Spun Aluminum Shade
• Uplight Feature Option
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Exterior Finish + OA + Option Code

S2585-D-L36 + 27K + PT + OA + Option
S2585-D-L52 30K XT
S2585-D-L64 35K CC
S2585-DI-L48-12U 40K
S2585-DI-L64-12U
S2585-DI-L80-16U
S2587-D-L36
S2587-DI-L48-12U
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA50
OMA Opal Matte Acrylic Bottom Lens
2C Two Circuit for Uplight – Downlight Control
RFC Regressed Frosted Clear Lens Option
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables
ACSW Aircraft Cable Swivel Mount for Sloped Ceilings

LIGHT OUTPUT

Lxx-xxU = Lxx indicates the TOTAL wattage of the fixture. U indicates the wattage of the uplight. So the total wattage of the downlight is Lxx minus xxU. (Example: L80-16U has 80-16=64W of downlight)
Uplight = ~125 LPW (Example: L12= 12W x 125LPW = 1,500 Lumens)
Downlight = ~91 LPW (Example: L36= 36W x 91LPW = 3,276 Lumens)
