DIMENSIONS

W H X BASE MODEL NO.
6″ 96″ 40″ S2580-L24
6″ 96″ 52″ S2581-L34
6″ 96″ 64″ S2582-L48
SPECIFICATIONS

Drivers: 0-10V dimming to 1%, 120/277 for both Cylinder and Downlight (on separate circuits)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

• Opal Matte Acrylic Cylinder
• Downlight and Cylinder Core May Be Wired to Separate Control Circuits
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Downlight + Lamp Code + Finish + OA + Option Code

S2580-L24 + ____* + 27K + PT + OA + Option
S2581-L34 D14N 30K XT
S2582-L48 D14M 35K CC
D14W 40K

____* = if left blank – no downlight

FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
PF Pure Metal Finishes*
CC Custom Painted Finish

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)

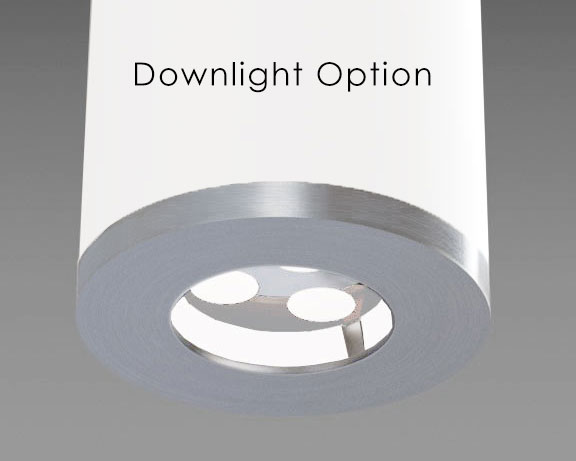

DOWNLIGHT OPTIONS

D14N Narrow (30 degrees)
D14M Medium (45 degrees)
D14W Wide (60 degrees)

OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48

LIGHT OUTPUT

Cylinder Core Lighting Lumens: LXX = LED Wattage, therefore L24 = LED 24W. The typical lumen output is ~83LPW, so therefore L24 would deliver 1,992L. Use this formula to estimate delivered lumens based on the LXX number for each length.(Example: L24= 24W x 83LPW = 1,992 Lumens)
Downlight Lumens: DxxW indicates Downlight wattage and beam spread. For the downlight, typical lumen output is 100LPW, so a D14W would deliver 1,400L in a wide beam pattern.
