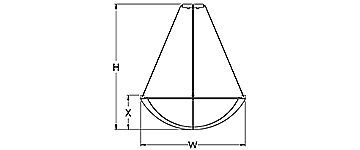

DIMENSIONS

W H X BASE MODEL NO.
30″ 36″ 9″ S2435-L60
30″ 36″ 9″ S2435-L72
40″ 42″ 10″ S2436-L72
40″ 42″ 10″ S2436-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bowl
• Solid Metal Decorative Ring and Fins
• Single Stem with (4) AC Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2435-L60 + 27K + PT + OA + Option
S2435-L72 30K BA
S2436-L72 35K BB
S2436-108 40K BC
BN
PC
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome		 BN Brushed Nickel
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L60= 60W x 81LPW = 4,860 Lumens)
