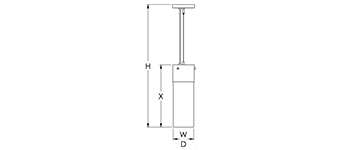

DIMENSIONS

W H X BASE MODEL NO.
6″ 36″ 18 1/4″ S2380-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Glass
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• Solid Aluminum Cap
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2380-L24 + 27K + PT + OA + Option
30K BA
35K BB
40K BC
BN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OMA Opal Matt Acrylic
BK1 Black Cord with (1) Adjustable Aircraft Cables
WH1 White Cord with (1) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L24= 24 x 69 = 1,656 Lumens)
