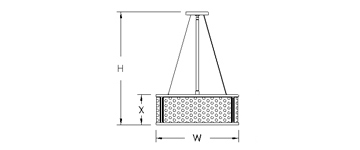

DIMENSIONS

W H X BASE MODEL NO.
22″ 30″ 8″ S2350-L60
34″ 36″ 10″ S2351-L84
40″ 36″ 11″ S2352-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bottom Lens
• Brushed Perforated Metal over Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2350-L60 + 27K + PT BN + OA + Option
S2351-L84 30K BA PB
S2352-L108 35K BB PC
40K BC
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L60= 60 x 81 = 4,860 Lumens)
