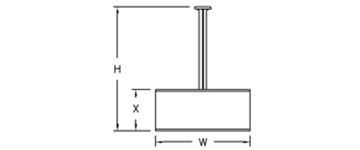

DIMENSIONS

W H X BASE MODEL NO.
27 1/2″ 36″ 12″ S2340-L60
34 1/2″ 36″ 13″ S2341-L72

Consult factory for larger diameters.

SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Clear Silver Electrical Cord with (3) stainless steel Cables
• Opal Matte Acrylic Bottom Diffuser
• Fabric shades on heavy Translucent White styrene
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Fabric Code + OA +  Option Code

S2340-L60 + 27K + PT +
LF01 LF08
+ OA + Option
S2341-L72 30K BA
LF02 LF09
35K BB
LF03 LF10
40K BC
LF04 LF11
BN
LF05 LF12
PC
LF05 LF12
LF06 LF13
LF07 LF14
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
FABRIC

LF01 Huggy White LF02 Olive LF03 Sage
LF04 Orchre LF05 Praline LF06 Linen
LF07 Canvas LF08 Butter LF09 Breeze
LF10 Ebony LF11 Parchment LF12 Flan
LF13 Natural HF LF14 Merlot
CLF Custom Linen Fabric Shade (Consult Factory)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
2C Two-Circuit Wiring
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables

LIGHT OUTPUT – (VARIES WITH SHADE COLOR)

LXX = ~ 92 LPW Delivered Lumens (Example: L60= 60W x 92LPW = 5,520 Lumens)[White Shade – LF01]
