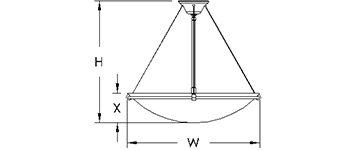

DIMENSIONS

W H X BASE MODEL NO.
26″ 24″ 5 7/8″ S2310-L60
36″ 36″ 7 1/2″ S2311-L72
42″ 36″ 8″ S2312-L108
48″ 36″ 10″ S2313-L120
60″ 48″ 15″ S2314-L144
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2310-L60 + 27K + PT BN + OA + Option
S2311-L72 30K BA PB
S2312-L108 35K BB PC
S2313-L120 40K BC PN
S2314-L144
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Painted Finishes*
*(Specify Color Code from the list of Powdercoat finishes [except interior only metallics])
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA-1 White; FA-2, Antique; FA-3 Grey; FA-4 Taupe; FA-5 Honey, FA-6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring

LIGHT OUTPUT

LXX = ~ 88 LPW Delivered Lumens (Example: L60= 60 x 88 = 5,280 Lumens)
