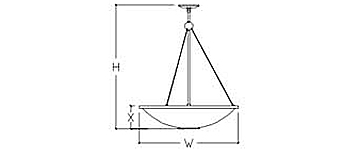

DIMENSIONS

W H X BASE MODEL NO.
24″ 36″ 8″ S2290-L60
30″ 36″ 9″ S2291-L72
36″ 48″ 10″ S2292-L96
42″ 48″ 11″ S2293-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2290-L60 + 27K + PT BN + OA + Option
S2291-L72 30K BA PB
S2292-L96 35K BB PC
S2293-L108 40K BC
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring

LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L60= 60W x 88LPW = 5,280 Lumens)
