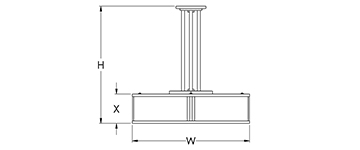

DIMENSIONS

W H X BASE MODEL NO.
24″ 24″ 6″ S2280-L60
30″ 24″ 6″ S2281-L72
36″ 24″ 6″ S2282-L84
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2280-L60 + 27K + PT + OA + Option
S2281-L72 30K BA
S2282-L84 35K BB
40K BN
PB
PN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BN Brushed Nickel
PB Polished Brass
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring
TPL Top Lens, Opal Acrylic

LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L60= 60 x 85 = 5,100 Lumens)
