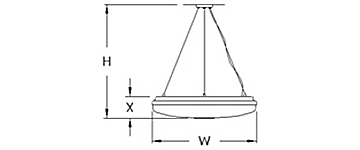

DIMENSIONS

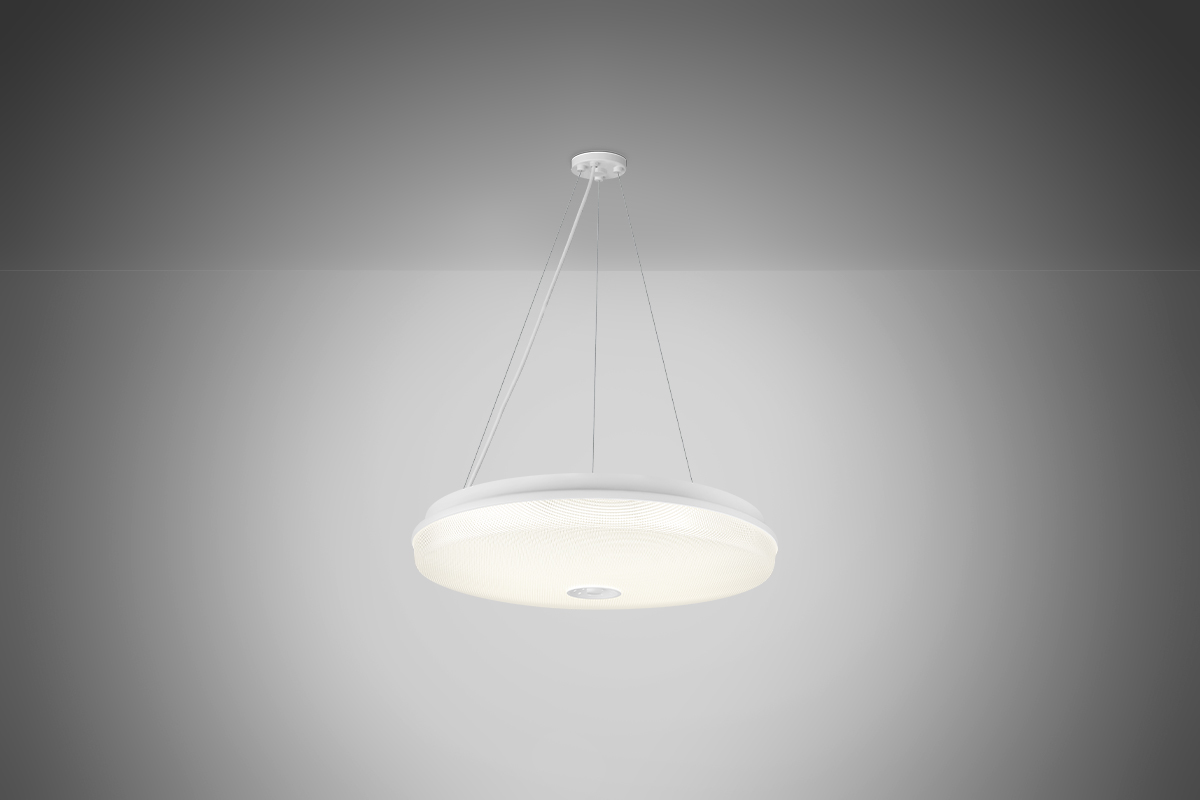

W H X BASE MODEL NO.
23″ 48″ 6 1/8″ S2255-L120
30″ 48″ 6 1/8″ S2256-L120
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2255-L120 + 27K + PT + OA + Option
S2256-L120 30K WH
35K
40K
FINISHES

WH White PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy
1SAC Single Stem with Aircraft Cables
CN Chain and Power Cord Mount
2C Two-Circuit Wiring
NP1 120V NEMA Plug w/3 Connector Cord
NP2 277V NEMA Plug w/3 Connector Cord

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L120= 120 x 81 = 9,720 Lumens)
