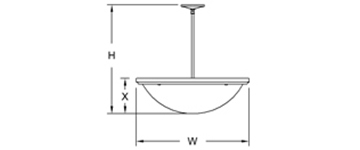

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 24″ | 36″ | 8 1/2″ | S2220-L48 |
| 27 1/2″ | 36″ | 8 1/2″ | S2221-L60 |
| 33 1/2″ | 36″ | 9″ | S2222-L72 |
| 39 1/2″ | 36″ | 10″ | S2223-L108 |
| 45 1/2″ | 36″ | 11″ | S2224-L120 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish Code + OA + Option Code
| S2220-L48 | + | 27K | + | PT | + | OA | + | Option |
| S2221-L60 | 30K | BA | ||||||
| S2222-L72 | 35K | BB | ||||||
| S2223-L108 | 40K | BC | ||||||
| S2224-L120 | PB | |||||||
| PC |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
PB Polished Brass PC Polished Chrome PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring
CF Center Finial
LIGHT OUTPUT
LXX = ~ 88 LPW Delivered Lumens (Example: L48= 48W x 88LPW = 4,224 Lumens)
