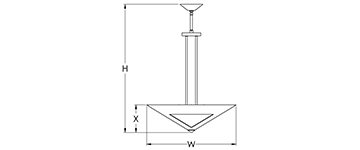

DIMENSIONS

W H X BASE MODEL NO.
25″ 36″ 7 1/2″ S2170-L60
36″ 42″ 11″ S2171-L72
48″ 48″ 14 1/2″ S2172-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic (Bottom Dome)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2170-L60 + 27K + PT + OA + Option
S2171-L72 30K
S2172-L108 35K
40K
FINISHES

PT Painted Finishes*
*(Specify Color Code from Our Standard Finish Chart)

OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy (Single Stem Only)
NAD No Acrylic Diffuser – Solid Housing
DAD Divided Acrylic Diffuser

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L60= 60 x 69 = 4,140 Lumens)

No Acrylic Diffuser Option
Divided Acrylic Diffuser
