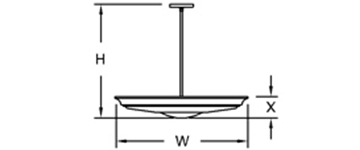

DIMENSIONS

W H X BASE MODEL NO.
25″ 24″ 5″ S2160-L60
34″ 30″ 5 1/2″ S2161-L84
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic (Bottom Dome)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2160-L60 + 27K + PT + OA + Option
S2161-L84 30K BA
35K BB
40K BN
PB
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BN Brushed Nickel
PB Polished Brass
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy (Single Stem Only)
5S Five Stems

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L60= 60 x 75 = 4,500 Lumens)
