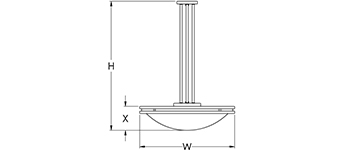

DIMENSIONS

W H X BASE MODEL NO.
22″ 30″ 5 3/4″ S2120-L48
34″ 30″ 6 3/4″ S2121-L60
40″ 30″ 9 3/4″ S2122-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2120-L48 + 27K + PT BN + OA + Option
S2121-L60 30K BA PB
S2122-L108 35K BB PC
40K BC PN
FINISHES

BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
OA Specify Overall Height of Fixture in Inches; e.g. – OA48

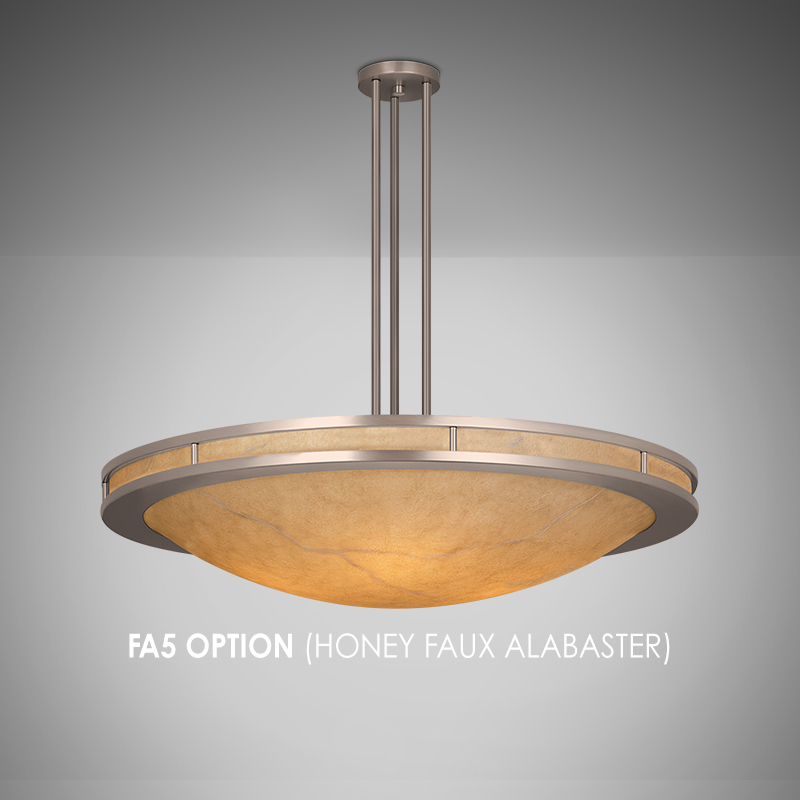

FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy (Single Stem Only)

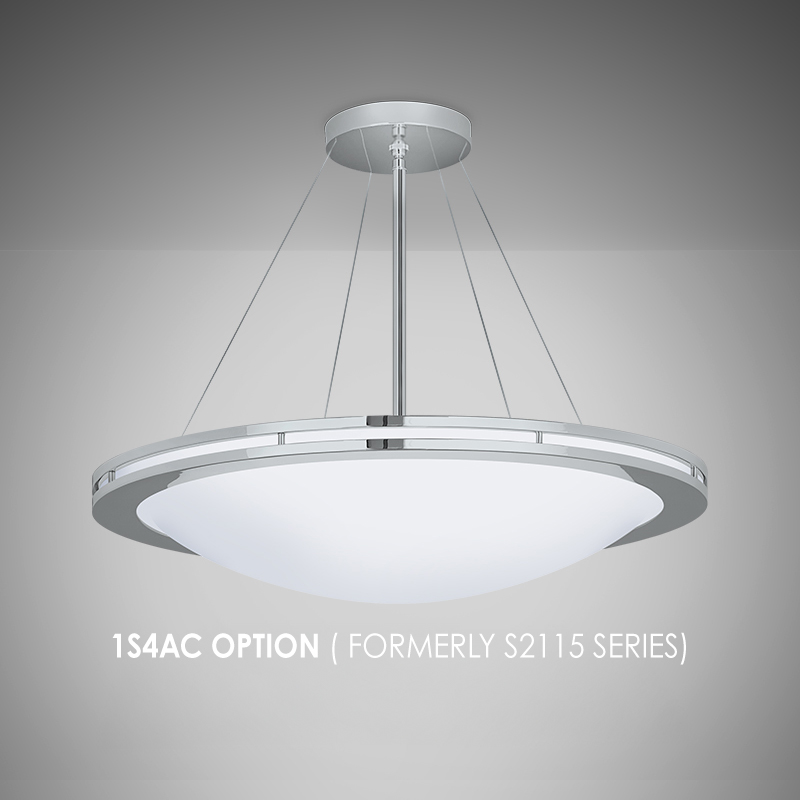

1S4AC Single Stem with (4) Aircraft Cables (Formerly S2115 Series)
1S Single Stem, No Cables
2C Two-Circuit Wiring
SB3 Clear Silver Braided Cord with (3) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 88 LPW Delivered Lumens (Example: L48= 48 x 88 = 4,224 Lumens)
