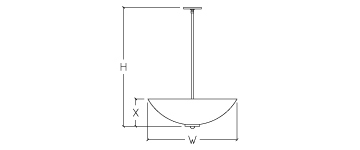

DIMENSIONS

W H X BASE MODEL NO.
24″ 36″ 7″ S2070-L32
30″ 36″ 8″ S2071-L48
36″ 36″ 9″ S2072-L60
42″ 36″ 10″ S2073-L72
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

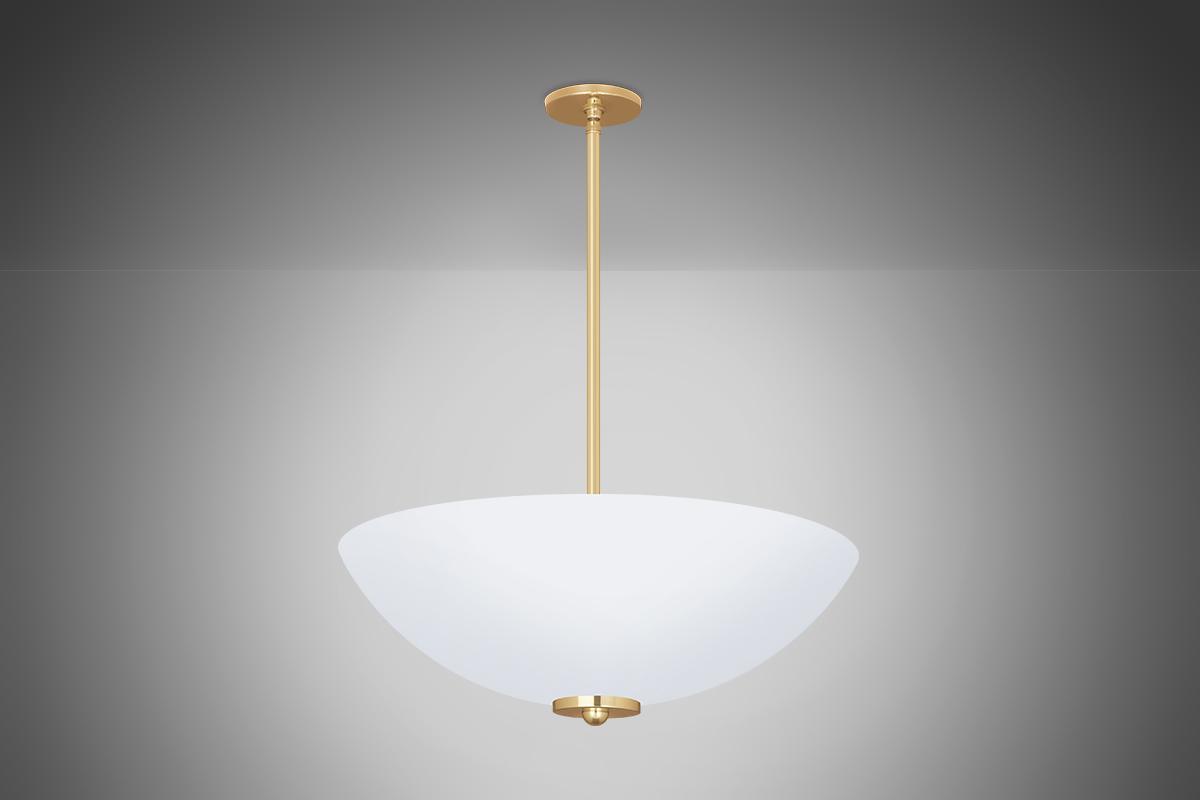

• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Option Code

S2070-L32 + 27K + PT + OA + Option
S2071-L48 30K BA
S2072-L60 35K PB
S2073-L72 40K PC
FINISHES

BA Brushed Aluminum
PB Polished Brass
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Emergency Battery Pack with LED Lighting (Remote – Requires Additional Power Cable)
MS Multi-Stem
OA Specify Overall Height of Fixture in Inches; e.g. – OA48

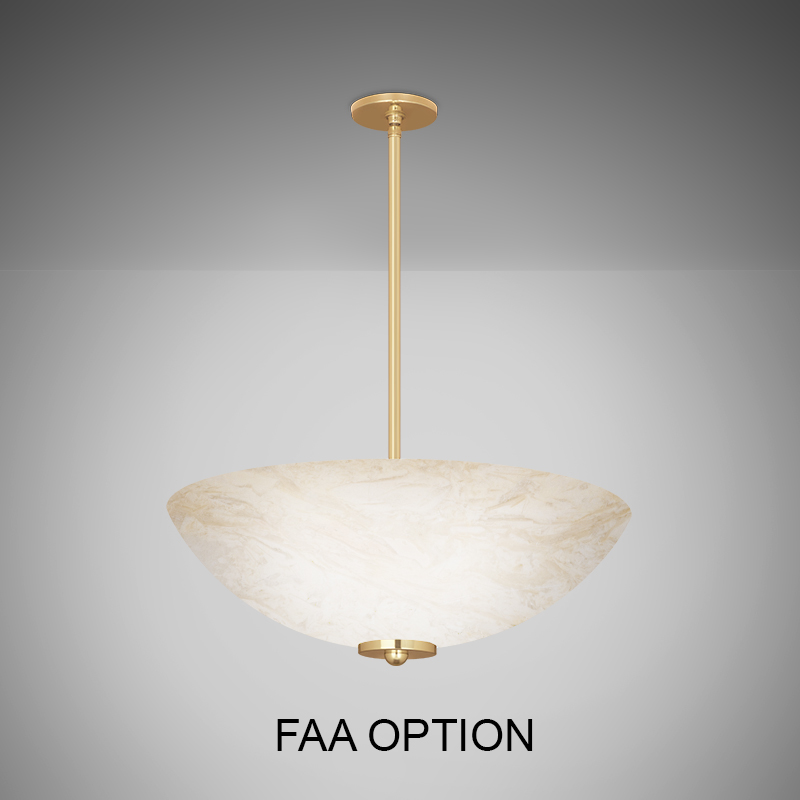

FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy (Single Stem Only)
2C Two-Circuit Wiring

LIGHT OUTPUT

LXX = ~ 90 LPW Delivered Lumens (Example: L32= 32 x 90 = 2,880 Lumens)
