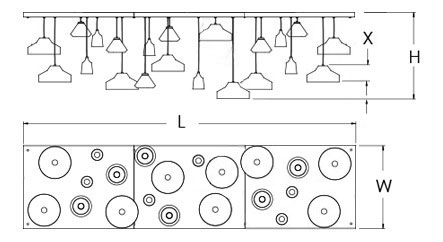

DIMENSIONS

L W H X BASE MODEL NO.
48″ 36″ 72″ ~7″ S1110-7N20 (7 Shades)
96″ 36″ 72″ ~7″ S1111-14N20 (14 Shades)
144″ 36″ 72″ ~7″ S1112-21N20 (21 Shades)
96″ 72″ 72″ ~7″ S1113-28N20 (28 Shades)
SPECIFICATIONS

Voltage: 120V Only
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided (Additional structural blocking required for weight).

FEATURES

• Open bottom shades in (3) Styles
• E26 Sockets (120V only)
• Cord Hung shades allow for customer adjustment of individual shades

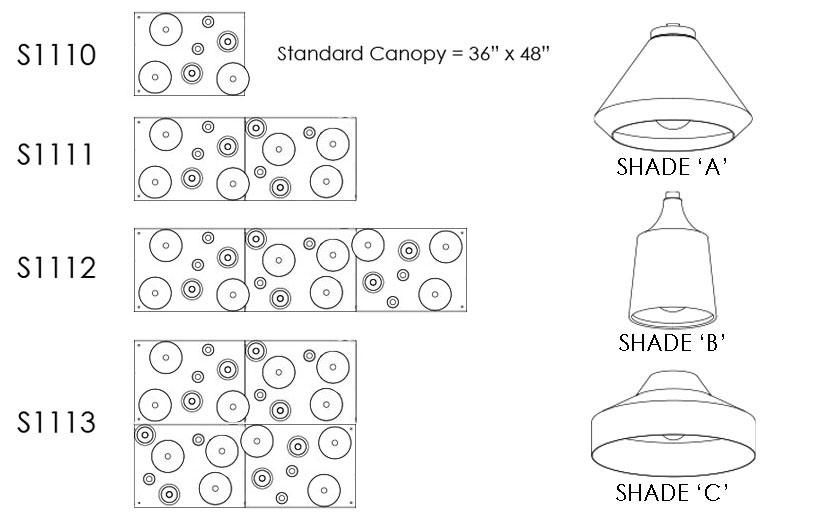

ORDER AS A COMPLETE UNIT:

Model No. + Canopy Finish Code + Shade ‘A’ Finish Code + Shade ‘B’ Finish Code + Shade ‘C’ Finish Code + OA +  Option Code

S1110‑7N20 + PT + PT + PT + PT + OA + Option
S1111‑14N20 CC CC CC CC
S1112‑21N20 BA BA BA BA
S1113‑28N20 CT CT CT CT
GT GT GT GT
NT NT NT NT
ZT ZT ZT ZT
PWT PWT PWT PWT
BST BST BST BST
TT TT TT TT
FINISHES

BA Brushed Aluminum
CT Copper Touch
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
TT Toffee Touch
PWT Pewter Touch
BST Blackened steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK0 Black Power Cables
WH0 White Power Cables
