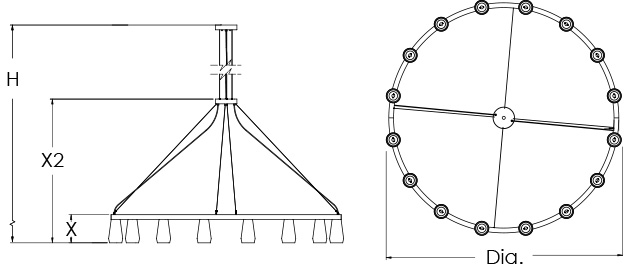

DIMENSIONS

Dia X X2 H BASE MODEL NO.
48″ 11 3/4″ 30″ 48″ S1100-8N20
48″ 11 3/4″ 30″ 48″ S1100-8L08
72″ 11 3/4″ 45″ 72″ S1101-12N20
72″ 11 3/4″ 45″ 72″ S1101-12L08
96″ 11 3/4″ 60″ 96″ S1102-16N20
96″ 11 3/4″ 60″ 96″ S1102-16L08
SPECIFICATIONS

Driver: 0-10V dimming to 1% for LED Lamping, 120V Only (for LED Source)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight).

FEATURES

• Open Shade
• Clear Silver Braided Cord(s) with (4) Adjustable Aircraft Cable w/ Gathering Ring
• LED or Incandescent Lamping – 120V only Max 22W each
• LED option ~8W per shade/0-10V 1% Dimming Drivers

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish  + OA + Option Code

S1100-8N20 + 27K + PT CT + OA + Option
S1100-8L08 30K BA PWT
S1101-12N20 35K NT BST
S1101-12L08 40K GT TT
S1102-16N20 ZT CC
S1102-16L08

(Lamp code [such as 27K, 30K, etc.] is NOT required for N20 options – CCT is by others)

FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch		 PWT Pewter Touch
BST Blackened Steel Touch
TT Toffee Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
OA Specify Overall Height of Fixture in Inches; E.G. – OA60
BK4 Black Cord with (4) Adjustable Aircraft Cables
WH4 White Cord with (4) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 70 LPW (LED Lamping) Delivered Lumens (Example: 8L08= 8QTY x 8W x 70LPW = 4,480 Lumens). Light output for N20 Lamping is based on the chosen lamp (by others).
